Same model may have multiple batches, images only for reference.

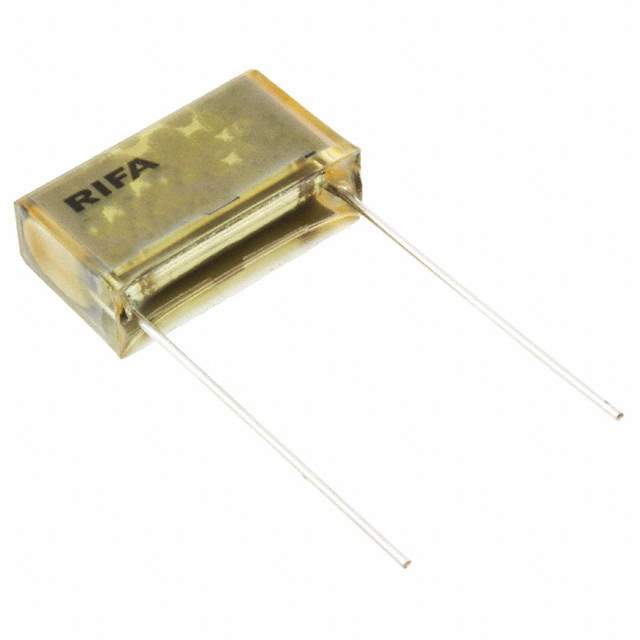

P409CE104M250AH220 Real Image
Same model may have multiple batches, images only for reference.

P409CE104M250AH220

Part No P409CE104M250AH220
Manufacturer Kemet
Catalog EMI/RFI Filters (LC, RC Networks)
Datasheet
P409CE104M250AH220 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>EMI/RFI Filters (LC, RC Networks)
Mfr KEMET
Series PMR209
Package Bulk
Type Low Pass
Filter Order 1st
Technology RC
Number of Channels 1
Resistance - Channel (Ohms) 22
Values R = 22Ohms, C = 0.1µF
ESD Protection No
Temperature Range - Operating -40°C ~ 85°C
Applications General Purpose
Voltage - Rated 250VAC
Mounting Type Through Hole
Package / Case Radial
Dimension 0.945" L x 0.299" W (24.00mm x 7.60mm)
Height 0.551" (14.00mm)
Base Product Number P409CE
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1315462-P409CE104M250AH220
Ultra Librarian 3D Model Ultra Librarian P409CE104M250AH220 CAD Model

Description

The KEMET PMR209 EMI/RFI filter is a low pass type filter that is suitable for general-purpose applications.

  • Voltage Rating: 250VAC
  • Resistance: 22 Ohms
  • Package/Case: Radial
  • Dimensions: 0.945" L x 0.299" W (24.00mm x 7.60mm)
  • Package: Bulk
  • Mounting Type: Through-hole
  • Temperature Range for Operation: -40°C to 85°C
