Same model may have multiple batches, images only for reference.

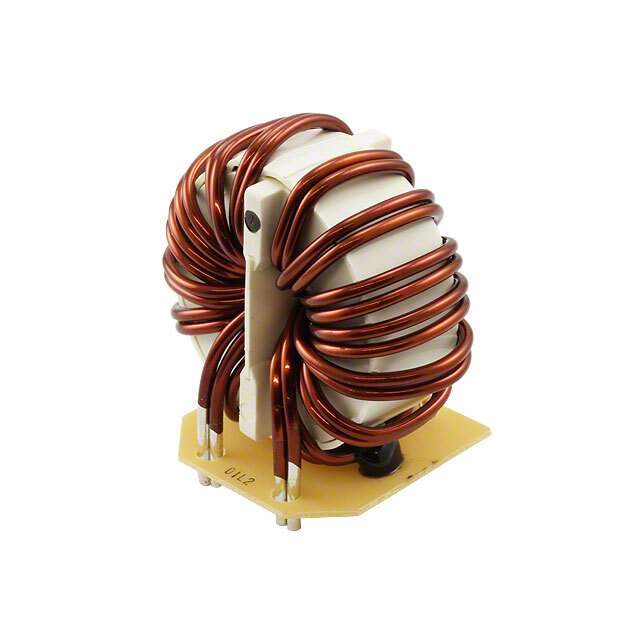

SCR-020-0R55A250J Real Image
Same model may have multiple batches, images only for reference.

SCR-020-0R55A250J

Part No SCR-020-0R55A250J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCR
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 25 mH @ 10 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 200mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.142" L x 0.906" W (29.00mm x 23.00mm)
Height (Max) 1.142" (29.00mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number SCR-020
Other Names 399-20187,UAL20R55A250J0
Standard Package 240
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1276891-SCR-020-0R55A250J
Ultra Librarian 3D Model Ultra Librarian SCR-020-0R55A250J CAD Model

Description

This is a common mode choke filter with a voltage rating of 250V and current rating (max) of 2A.

  • Manufacturer: KEMET
  • Voltage Rating: 250V
  • Current Rating (max): 2A
  • Height (max): 1.142" (29.00mm)
  • Inductance @ Frequency: 25 mH @ 10 kHz
  • DC Resistance (DCR) (max): 200mOhm
  • Mounting: Through hole
  • Package/Case: Horizontal, 4 PC pin
  • Temperature Range: -25°C ~ 120°C
