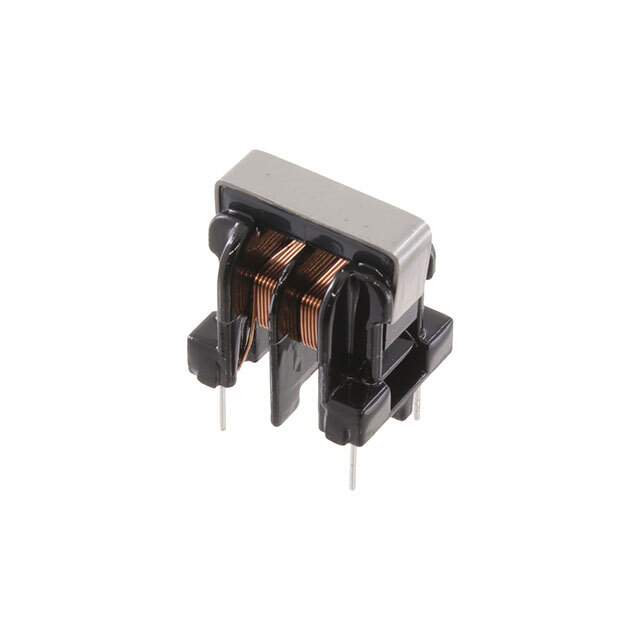

SU16VD-30040 Real Image
Same model may have multiple batches, images only for reference.

SU16VD-30040

Part No SU16VD-30040
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 40 µH @ 1 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 70mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.906" L x 0.748" W (23.00mm x 19.00mm)
Height (Max) 1.083" (27.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU16VD
Other Names 399-SU16VD-30040,UALSU16VD30040
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276461-SU16VD-30040
Ultra Librarian 3D Model Ultra Librarian SU16VD-30040 CAD Model

Description

KEMET SU16VD-30040 Common Mode Choke is a two-line filter that provides excellent EMI suppression in a small package.

  • Manufacturer: KEMET
  • Filter Type: Common Mode Choke
  • Application: EMI Suppression, Noise Suppression
  • Voltage Rating: 250V AC
  • Current Rating (Max): 3A
  • DC Resistance (DCR): 70mOhm
  • Inductance: 40μH @ 1kHz frequency
  • Mounting Type: Through-hole
  • Package: Vertical, 4 PC pin
  • Temperature Range: -25°C to 120°C
