Same model may have multiple batches, images only for reference.

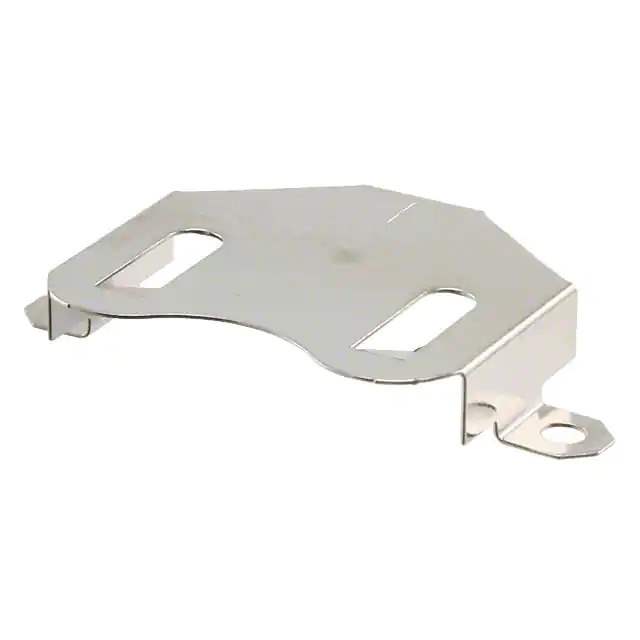

3008 Real Image
Same model may have multiple batches, images only for reference.

3008

Part No 3008
Manufacturer Keystone Electronics
Catalog Battery Holders, Clips, Contacts
Description BATT RETAIN COIN 24.5MM 1CEL SMD
Datasheet
3008 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Battery Products - Battery Holders, Clips, Contacts
Mfr Keystone Electronics
Package Bulk
Product Status Active
Battery Type, Function Coin Cell, Retainer
Style Retainer
Battery Cell Size Coin, 24.5mm
Number of Cells 1
Battery Series 2450
Mounting Type PCB, Surface Mount
Termination Style SMD (SMT) Tab
Height Above Board 0.230" (5.85mm)
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 545249-3008
Ultra Librarian 3D Model Ultra Librarian 3008 CAD Model

Description

The 545249-3008 is a battery retainer designed for use in battery products.

  • Mounting Type: Surface Mount
  • Termination Style: SMD (SMT) tab
  • Height Above Board: 0.230 inches (5.85mm)
  • Coin Cell Battery Size: 24.5mm
  • Product Status: Active
  • ECCN: EAR99
  • REACH: Unaffected
  • Package: Bulk (100 pieces)
  • Manufacturer: Keystone Electronics
  • HTSUS Code: 8536.69.4040
