Same model may have multiple batches, images only for reference.

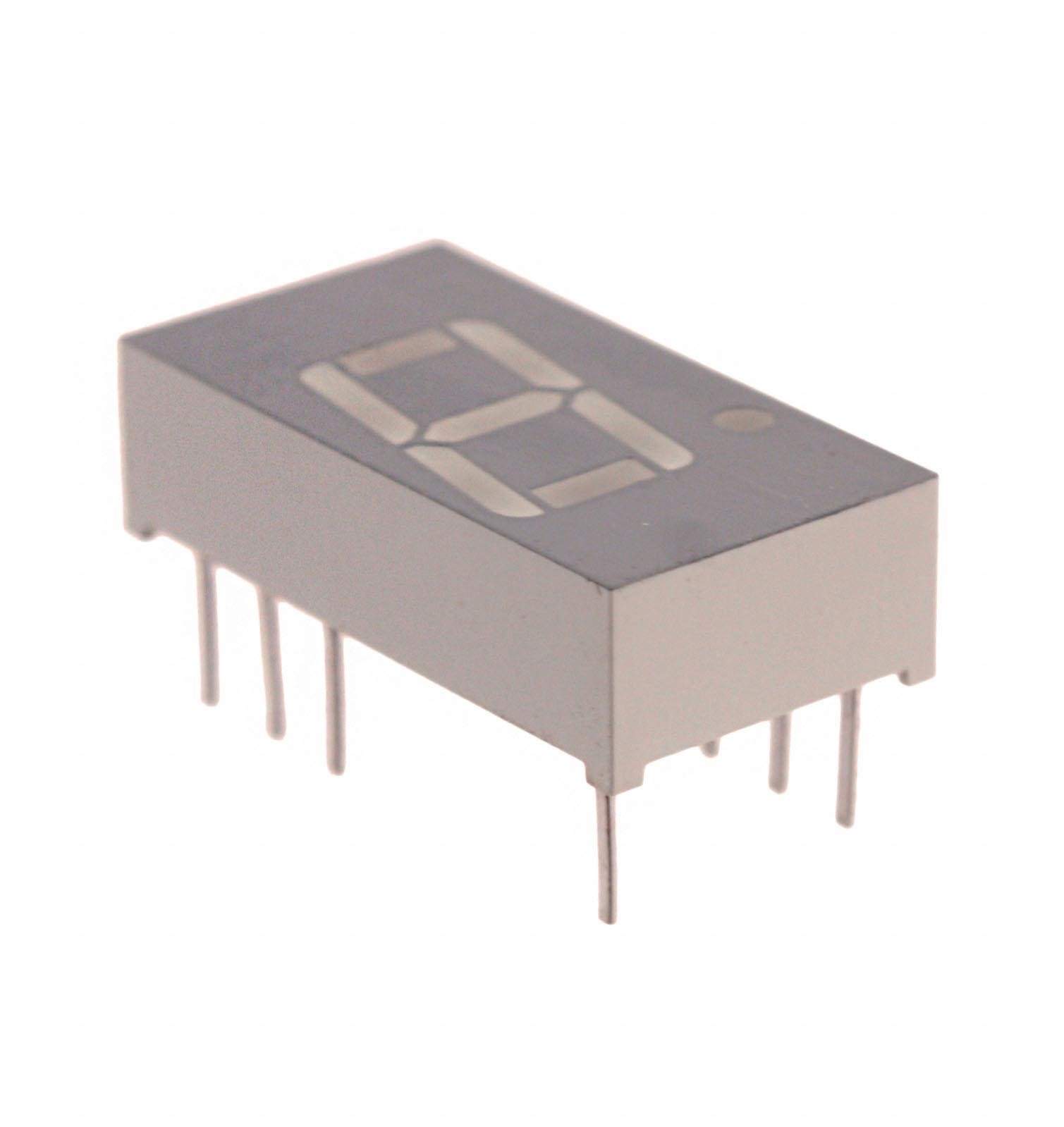

SA04-11GWA Real Image
Same model may have multiple batches, images only for reference.

SA04-11GWA

Part No SA04-11GWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 0.4" SGL GRN 14DIP  /  Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2.2V 20mA 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) 14-DIP (0.295", 7.50mm)
Datasheet
SA04-11GWA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Number of Characters 1
Dimension 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm)
Digit/Alpha Size 0.40" (10.16mm)
Display Type 7-Segment
Common Pin Common Anode
Color Green
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Millicandela Rating 8.6mcd
Wavelength - Peak 565nm
Power Dissipation (Max) 62.5mW
Package / Case 14-DIP (0.295", 7.50mm)
Base Product Number SA04-11
Other Names SA0411GWA,754-1456-5,Q5998610
Standard Package 27
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242684-SA04-11GWA
Ultra Librarian 3D Model Ultra Librarian SA04-11GWA CAD Model

Description

The Kingbright SA04-11GWA is a 7-segment display module with a common anode configuration.

  • Configuration: Common anode
  • Digit/Alpha Size: 0.40 inches or 10.16mm
  • Millicandela Rating: 8.6mcd
  • Color: Green
  • Peak Wavelength: 565nm
  • Voltage Forward: 2.2V
  • Test Current: 20mA
  • Package/Case: 14-DIP (0.295 inches, 7.50mm)
  • Dimension: 0.738 inches H x 0.386 inches W x 0.200 inches D (18.75mm x 9.80mm x 5.08mm)
