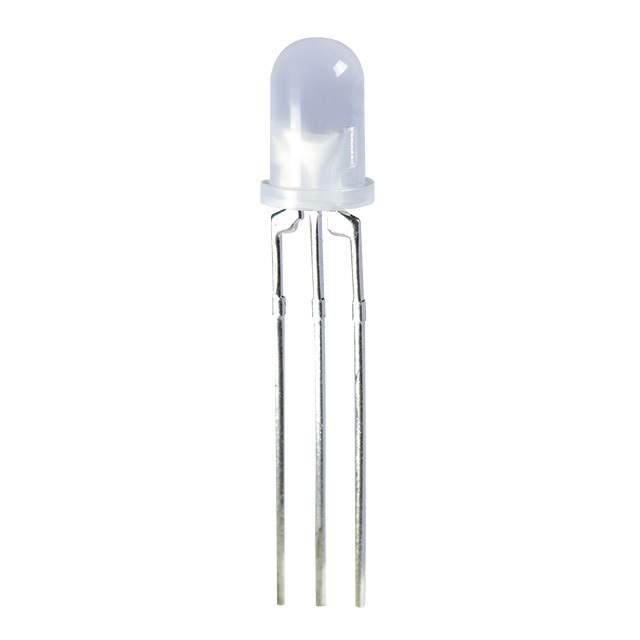

Same model may have multiple batches, images only for reference.

WP59EGW/CA

Name: WP59EGW/CA
Brand: Kingbright
SKU: 1331953
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	WP59EGW/CA
Manufacturer	Kingbright
Catalog	LED Indication - Discrete
Description	LED GRN/RED DIFFUSED T-1 3/4 T/H / Green, Red 568nm Green, 625nm Red LED Indication - Discrete 2.2V Green, 2V Red Radial - 3 Leads
Datasheet	WP59EGW/CA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Manufacturer	Kingbright
Packaging	Bulk
Color	Green, Red
Configuration	Common Anode
Lens Color	White
Lens Transparency	Diffused
Millicandela Rating	8mcd Green, 6mcd Red
Lens Style	Round with Domed Top
Lens Size	5mm, T-1 3/4
Voltage - Forward (Vf) (Typ)	2.2V Green, 2V Red
Current - Test	20mA Green, 20mA Red
Viewing Angle	60°
Mounting	Through Hole
Wavelength - Dominant	568nm Green, 625nm Red
Wavelength - Peak	565nm Green, 627nm Red
Case / Package	Radial - 3 Leads
Supplier Device Package	T-1 3/4
Size / Dimension	5.00mm Dia
Height (Max)	11.35mm
Base Product Number	WP59
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Other Part Number	754-2191,Q4349222,WP59EGW/CA-ND
Standard Package	500
Win Source Part Number	1331953-WP59EGW/CA
Ultra Librarian 3D Model	Ultra Librarian WP59EGW/CA CAD Model

Alternative Products

Description

The Kingbright 1331953-WP59EGW/CA is a green and red through-hole LED with a viewing angle of 60 degrees.

Viewing Angle: 60 degrees
Millicandela Rating: 8mcd for green and 6mcd for red
Lens Style: Round with a domed top
Lens Size: 5mm in diameter
Forward Voltage: 2.2V for green and 2V for red
Current-Test: 20mA for both colors
Wavelength-Dominant: 568nm for green and 625nm for red
Wavelength-Peak: 565nm for green and 627nm for red
Package: T-1 3/4
Height: 11.35mm
Leads: 3
