MDA1360-8R2M KOHER（Shanghai）Electronics Co.,Ltd – Price, Stock & Datasheet

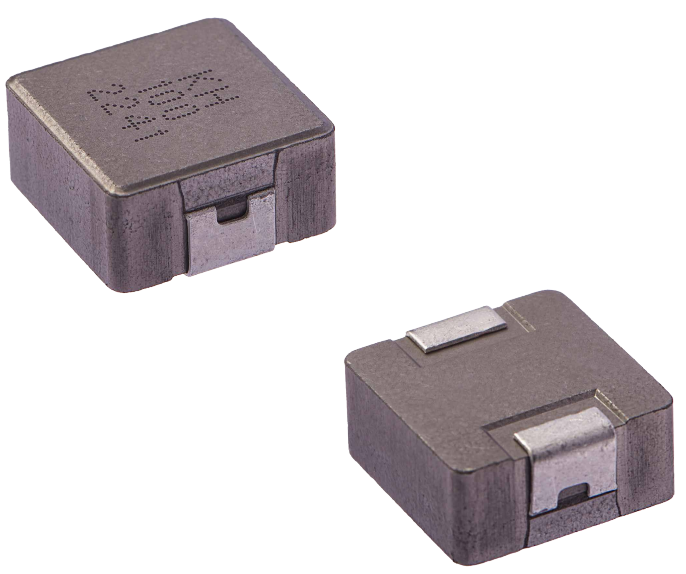

Same model may have multiple batches, images only for reference.

MDA1360-8R2M

Part No MDA1360-8R2M
Manufacturer KOHER（Shanghai）Electronics Co.,Ltd
Catalog Fixed Inductors
Description SMD 8.2uH 17A 13.5mΩ
Datasheet
MDA1360-8R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Saturation Current 17A
DC Resistance 13.5mΩ APPLICATION ·Headlamps, tail lamps and interior lighting ·HVAC ·Doors, window lift and seat control ·Audio subsystem ·Digital instrument cluster ·In-Vehicle Infotainment and navigation
Soldering Reflow
Preheat condition 150 ~200 C/ 60~120 sec.
Allowed time above 217 C 60~90 sec.
Max temperature 260 C.
Max time at max temperature 10 sec.
Allowed Reflow time 2x max.
Features Shielded construction Capable of corresponding high frequency"Low loss realized with low DCR."High performance (lsat) realized by metal dust core."Ultra low buzz noise, due to composite construction."100% Lead(Pb)-Free and RoHS compliant."
AEC-Q200 qualified"Operating temperature -55 to +155 'C (including self-temperature rise)
Quantity 500PCS
Ultra Librarian 3D Model Ultra Librarian MDA1360-8R2M CAD Model
