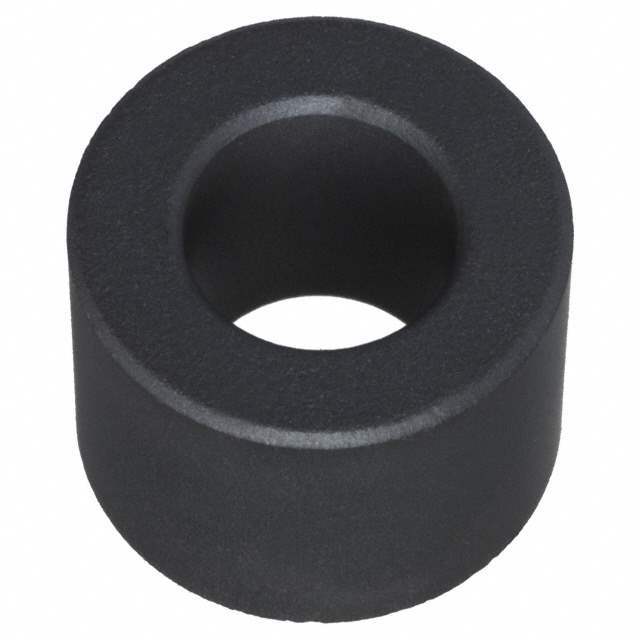

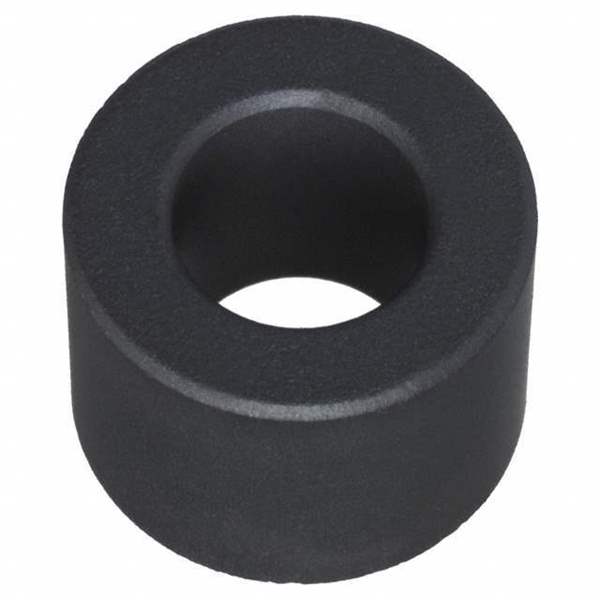

28B1142-000 Laird-Signal Integrity Products
Same model may have multiple batches, images only for reference.

28B1142-000

Part No 28B1142-000
Manufacturer Laird-Signal Integrity Products
Catalog Cable Ferrites
Description FERRITE CORE 85 OHM SOLID 19MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206303-28B1142-000
Manufacturer Laird-Signal Integrity Products
Category Filters-Cable Ferrites
Series 28B
Package Tray
Product Status Active
Design Solid
Type Round
Impedance @ Frequency 85Ohm @ 100MHz
Inner Dimension 0.748" Dia (19.00mm)
Outer Dimension 1.142" Dia (29.01mm)
Ultra Librarian 3D Model Ultra Librarian 28B1142-000 CAD Model

Description

For retrofit and post-assembly operations, a selection of high frequency EMI “split” cores are offered. Similar in performance to one-piece cylindrical core designs, these split ferrite cores provide excellent common and differential mode high frequency EMI suppression on round cable and wire assemblies. Black plastic snap-on cases provide secure closure of the split cores onto the cable or wire bundle.
