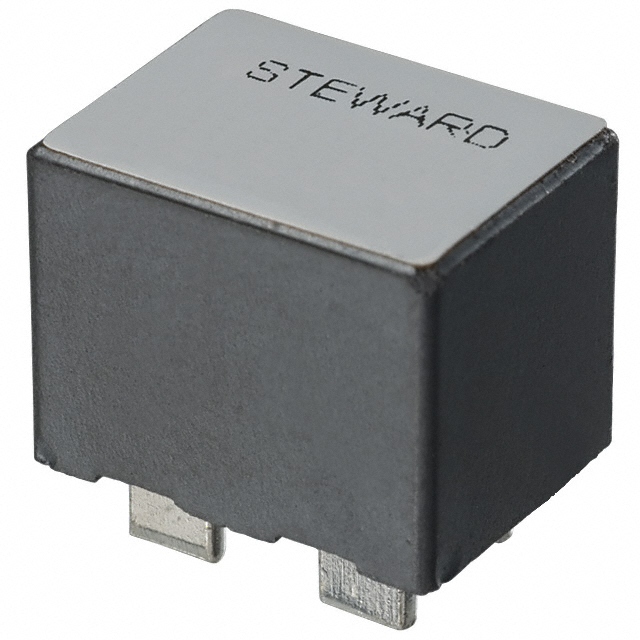

Same model may have multiple batches, images only for reference.

CM5441Z101B-10

Name: CM5441Z101B-10
Brand: Laird-Signal Integrity Products
SKU: WS1334094
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	CM5441Z101B-10
Manufacturer	Laird-Signal Integrity Products
Catalog	Common Mode Chokes
Description	CMC 75A 2LN 100 OHM TH
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	FiltersCommon Mode Chokes
Manufacturer	Laird-Signal Integrity Products
Series	CM
Packaging	Bulk
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Impedance @ Frequency	100 Ohms @ 100 MHz
Current Rating (Max)	75A
DC Resistance (DCR) (Max)	0.3mOhm
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Size / Dimension	0.540" L x 0.410" W (13.72mm x 10.41mm)
Height (Max)	0.424" (10.77mm)
Package / Case	Vertical, 4 PC Pin
Ultra Librarian 3D Model	Ultra Librarian CM5441Z101B-10 CAD Model
