Same model may have multiple batches, images only for reference.

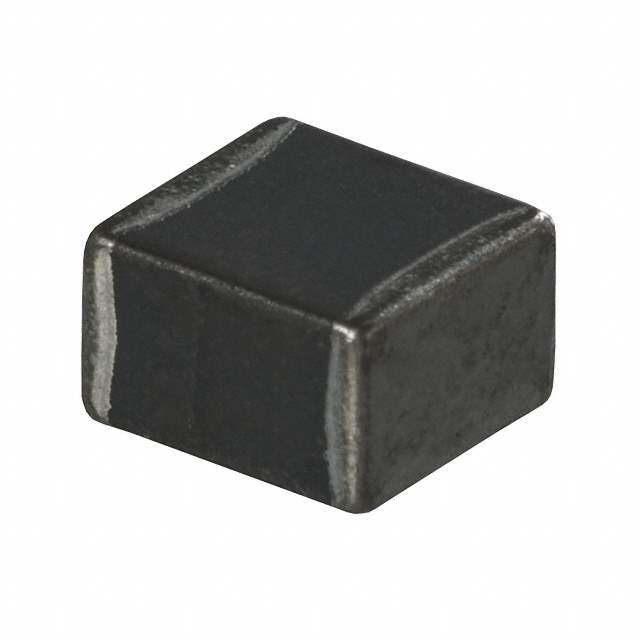

HI2220P601R-00 Real Image
Same model may have multiple batches, images only for reference.

HI2220P601R-00

Part No HI2220P601R-00
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 600 OHM 2220 1LN
Datasheet
HI2220P601R-00 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Power, Signal Line
Number of Lines 1
Impedance @ Frequency 600 Ohm @ 100MHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 25 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.130" (3.30mm)
Dimension 0.220" L x 0.200" W (5.59mm x 5.08mm)
Win Source Part Number 119781-HI2220P601R-00
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HI2220P601R-00 CAD Model

Description

The Laird-Signal Integrity Products HI series is a power and signal line filter with a current rating of 4A and a filter impedance of 600 Ohm at 100MHz. The DC resistance (DCR) is 25 mOhm and the height is 0.130" (3.30mm). This filter is ideal for use in electronic components that require a power and signal line filter to ensure a stable power and signal supply. The HI series is available in reel packaging and has an obsolete (EOL) status.
