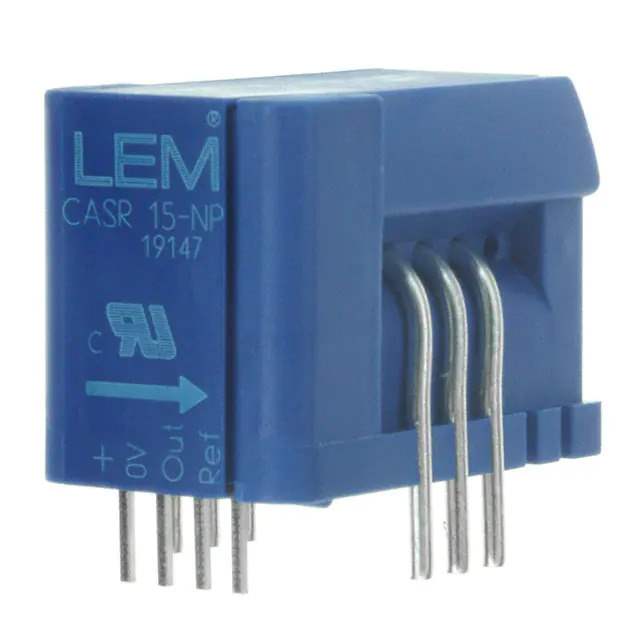

CASR 15-NP Real Image
Same model may have multiple batches, images only for reference.

CASR 15-NP

Part No CASR 15-NP
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT FLUX 15A AC/DC
Datasheet
CASR 15-NP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr LEM USA Inc.
Series CASR
Package Tray
Product Status Active
For Measuring AC/DC
Sensor Type Flux Gate, Closed Loop
Current - Sensing 15A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 41.67mV/A
Frequency 300kHz
Linearity ±1%
Accuracy ±0.8%
Voltage - Supply 4.75V ~ 5.25V
Response Time 0.3µs
Current - Supply (Max) 20mA
Temperature Range - Operating -40°C ~ 85°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case Module
Standard Package 50 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Win Source Part Number 847302-CASR 15-NP
Ultra Librarian 3D Model Ultra Librarian CASR 15-NP CAD Model

Description

The CASR 15-NP is a current sensor designed for measuring AC/DC currents up to 15A. It features a flux gate, closed-loop sensor type which provides accurate and reliable measurements.

  • Sensor Type: Flux gate, closed-loop
  • Sensitivity: 41.67mV/A
  • Response Time: 0.3µs
  • Voltage Supply: 4.75V to 5.25V
  • Polarization: Bidirectional
  • Output: Ratiometric and voltage output
  • Package: Module with through-hole mounting
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
  • Manufacturer: LEM USA Inc.
