Same model may have multiple batches, images only for reference.

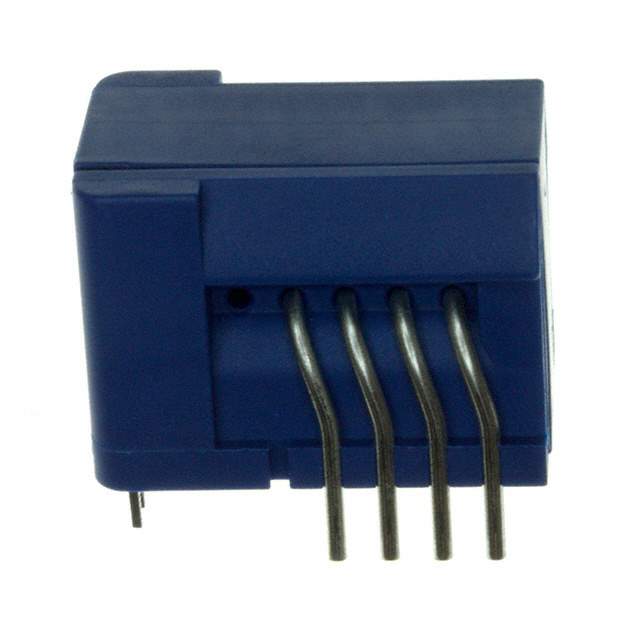

CKSR 15-NP Real Image
Same model may have multiple batches, images only for reference.

CKSR 15-NP

Part No CKSR 15-NP
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT FLUX 15A AC/DC
Datasheet
CKSR 15-NP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors
Estimated Pruduction Lead Time 23 Weeks
Features Current Sensor 15A 1 Channel Flux Gate, Closed Loop Bidirectional Module
Manufacturer LEM USA Inc.
Series CKSR
Package Tube
Operating Temperature Range -40°C ~ 105°C
Mounting Through Hole
Package Module
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Other Part Number 398-1096, 398-1096-5, 398-1096-5-ND, 90.E7.15.000.7, CKSR15NP
Quantity per package 50
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 866493-CKSR 15-NP
Ultra Librarian 3D Model Ultra Librarian CKSR 15-NP CAD Model

Description

The CKSR 15-NP is a current sensor product from LEM USA Inc.

  • Series: CKSR series
  • Maximum Output Current: 15A
  • Type: Closed loop bidirectional module
  • Package: Module package
  • Mounting: Through a hole
  • Operating Temperature: -40°C to 105°C
  • Category: Sensors
  • ECCN: EAR99
  • Supply and Demand Status: Limited
  • Package Quantity: 50 units
  • HTSUS: 9030.33.3800
