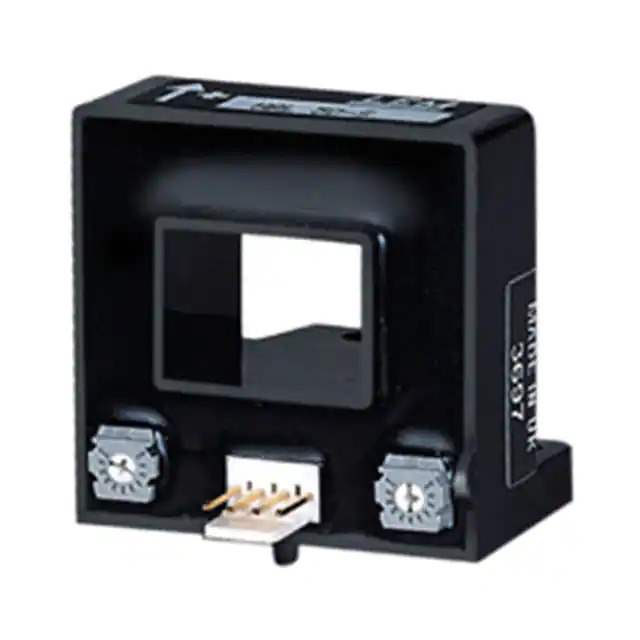

HAL 100-S Real Image
Same model may have multiple batches, images only for reference.

HAL 100-S

Part No HAL 100-S
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT HALL 100A AC/DC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr LEM USA Inc.
Series HAL
Package Bulk
Product Status Active
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 100A
Number of Channels 1
Output Voltage
Frequency DC ~ 50kHz
Linearity ±0.5%
Accuracy ±1%
Voltage - Supply ±15V
Response Time 3µs
Current - Supply (Max) 25mA
Temperature Range - Operating -25°C ~ 85°C
Polarization Bidirectional
Mounting Type Panel Mount
Package / Case Module
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Win Source Part Number 847240-HAL 100-S
Ultra Librarian 3D Model Ultra Librarian HAL 100-S CAD Model

Description

The HAL Series Current Sensor is a versatile sensor used for measuring AC/DC current.

  • Product Name: HAL Series Current Sensor
  • Manufacturer: LEM USA Inc.
  • Technology: Hall Effect, Open-Loop
  • Polarization: Bidirectional
  • Current-Sensing Range: 100A
  • Response Time: 3µs
  • Frequency Range: DC to 50kHz
  • Supply Voltage: ±15V
  • Current Consumption: 25mA (max)
  • Package: Module
  • Mounting: Panel Mounting
  • Temperature Range: -25°C to 85°C
