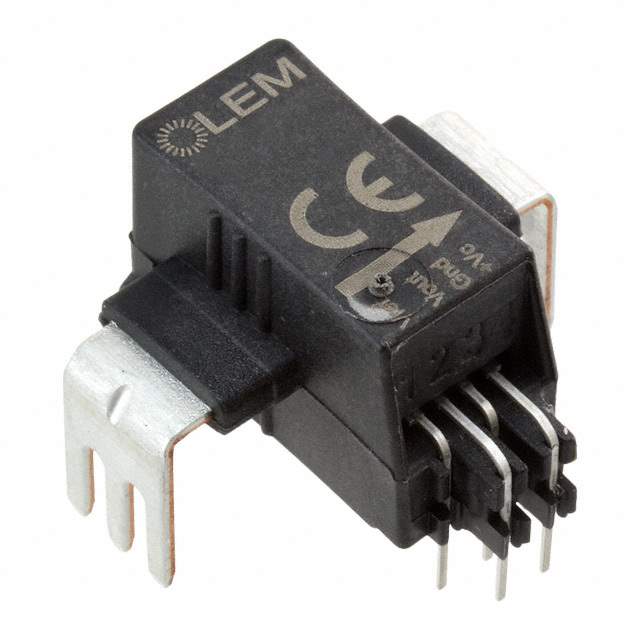

HLSR 20-P Real Image HLSR 20-P Real Image
Same model may have multiple batches, images only for reference.
HLSR 20-P Real Image HLSR 20-P Real Image
HLSR 20-P Real Image HLSR 20-P Real Image
Same model may have multiple batches, images only for reference.

HLSR 20-P

Part No HLSR 20-P
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT HALL 20A AC/DC  /  Current Sensor 20A 1 Channel Hall Effect, Open Loop Bidirectional Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Mfr LEM USA Inc.
Series HLSR-P
Package Tray
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 20A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 40mV/A
Frequency 400kHz
Linearity ±0.5%
Accuracy ±1%
Voltage - Supply 5V
Response Time 2.5µs
Current - Supply (Max) 25mA
Temperature Range - Operating -40°C ~ 105°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case Module
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Other Names 398-1152,HLSR20P,Q10126308A,90.J3.17.000.0
Standard Package 50
Win Source Part Number 963129-HLSR 20-P
Ultra Librarian 3D Model Ultra Librarian HLSR 20-P CAD Model

Description

The LEM USA Inc. HLSR 20-P is a current sensor that belongs to the HLSR-P series.

  • Manufacturer: LEM USA Inc.
  • Series: HLSR-P
  • Polarization: Bidirectional
  • Sensitivity: 40mV/A
  • Linearity: ±0.5%
  • Accuracy: ±1%
  • Voltage Supply: 5V
  • Mounting Type: Through Hole
  • Temperature Range: -40°C ~ 105°C
