Product Overview: LT1054IS8#TRPBF

The LT1054IS8#TRPBF is a versatile switched-capacitor voltage converter produced by Linear Technology. This integrated circuit (IC) is designed to provide reliable and efficient voltage inversion and doubling, with the added flexibility of adjustable output voltage. It is particularly suited for applications requiring a negative voltage generated from a positive input supply.

Key Features

• Voltage Conversion: The LT1054IS8#TRPBF can invert and double input voltages, making it a flexible solution for various circuit designs.
• Output Voltage: Users can adjust the output voltage to meet specific requirements, ensuring compatibility with a wide range of devices and applications.
• High Efficiency: With its switched-capacitor design, this IC offers high-efficiency voltage conversion, which is essential for battery-powered and portable devices.
• Low Noise: The device is engineered to minimize noise, providing a clean power supply that is critical for sensitive electronic components.
• Thermal Protection: The LT1054IS8#TRPBF includes thermal shutdown protection to prevent damage from overheating, enhancing the product's reliability and longevity.

Applications

The versatility of the LT1054IS8#TRPBF makes it suitable for a range of applications, including but not limited to:

• Portable devices requiring efficient power management
• Operational amplifier systems needing a negative supply voltage
• Memory backup systems
• Handheld instrumentation
• Industrial control systems

Product Specifications

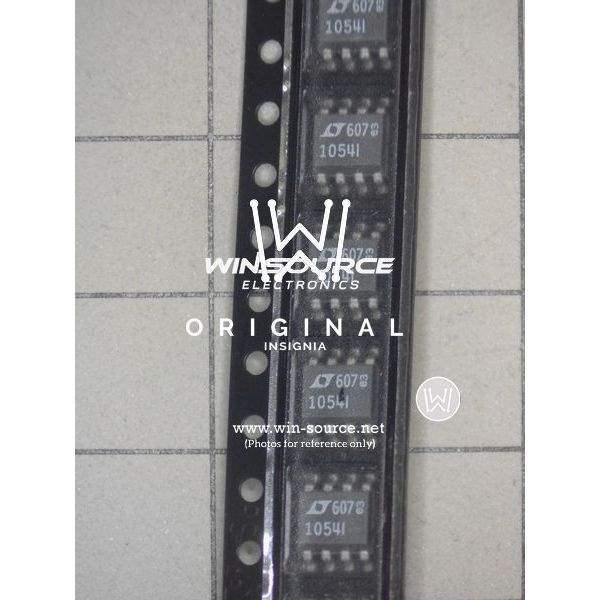

The LT1054IS8#TRPBF comes in an 8-lead SOIC package, which is widely accepted in the industry for its compact size and ease of integration into various circuit designs. The device operates over a wide input voltage range and is specified for operation from -40°C to 85°C, making it suitable for use in challenging environmental conditions.

Linear Technology's commitment to quality ensures that the LT1054IS8#TRPBF meets the highest standards, providing engineers with a reliable and robust voltage conversion solution for their electronic designs.
