Product Overview: LT1460KCS3-3.3#TRPBF

The LT1460KCS3-3.3#TRPBF is a high-precision, low-power voltage reference from Linear Technology, designed to offer a stable and accurate reference voltage for a wide array of applications. This component is particularly well-suited for precision data converters, portable instrumentation, battery-powered devices, and industrial control systems, where a stable reference voltage is critical for accurate data processing and control.

Key Features

• Precision Reference Voltage: The LT1460KCS3-3.3#TRPBF provides a fixed 3.3V output, which is meticulously regulated to ensure minimal deviation, making it reliable for critical applications.
• Low Temperature Coefficient: This device boasts an excellent temperature coefficient, ensuring that the voltage reference remains consistent across a wide range of operating temperatures.
• Low Dropout Voltage: The low dropout voltage feature allows the reference to remain stable even with minimal differences between the input voltage and the reference voltage, which is essential for battery-powered applications.
• High Output Current: It is capable of sourcing up to 20mA and sinking up to 20mA, providing sufficient current for most reference applications.
• Wide Operating Range: The device operates over a broad input voltage range, accommodating various input conditions and ensuring versatility in different system designs.
• Stable with Capacitive Loads: The LT1460KCS3-3.3#TRPBF is designed to be stable with capacitive loads, making it easier to integrate into systems without the need for additional compensating components.

Package and Reliability

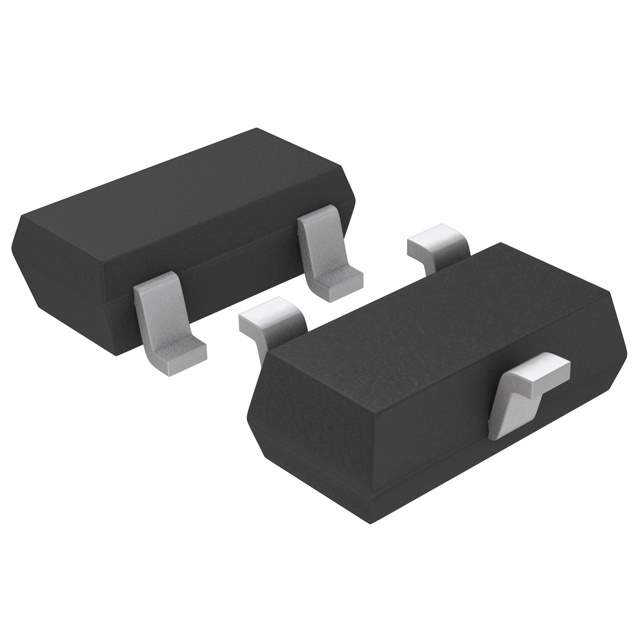

The LT1460KCS3-3.3#TRPBF comes in a compact SOT-23 package, which is ideal for space-constrained applications. The device is also characterized for performance over the industrial temperature range (-40°C to +85°C), ensuring reliability in a variety of environments.

Applications

With its precise voltage output and low power consumption, the LT1460KCS3-3.3#TRPBF is an excellent choice for:

• Portable and battery-powered equipment
• Data conversion systems
• Instrumentation and test equipment
• Automotive electronics
• Industrial control systems

Overall, the LT1460KCS3-3.3#TRPBF voltage reference from Linear Technology is an exceptional solution for designers who require a stable and precise voltage reference in their electronic systems.
