Linear Technology's LT3021EDH-1.8#PBF Low-Dropout Linear Regulator

The LT3021EDH-1.8#PBF is a high-performance low-dropout linear regulator (LDO) from Linear Technology, designed to provide precision voltage regulation with a fixed output of 1.8V. This LDO is ideal for applications that require a stable and clean power supply, with an emphasis on low dropout voltage and low noise characteristics.

With its ability to deliver up to 500mA of continuous output current, the LT3021EDH-1.8#PBF is well-suited for powering sensitive electronic components in a variety of systems, including portable devices, microprocessor-based systems, and industrial instrumentation. The device operates over a wide input voltage range from 1.8V to 20V, providing versatility in different power environments.

One of the key features of this LDO is its low dropout voltage, which allows for efficient operation even when the input-to-output voltage differential is minimal. This makes the LT3021EDH-1.8#PBF an excellent choice for battery-powered applications where maximizing battery life is critical. Additionally, the regulator boasts an impressively low quiescent current, further enhancing its power efficiency.

The LT3021EDH-1.8#PBF incorporates several protective features to ensure reliable operation under adverse conditions. These include built-in overcurrent protection, thermal shutdown, and reverse battery protection. Such safeguards contribute to the longevity and durability of both the regulator and the overall system it powers.

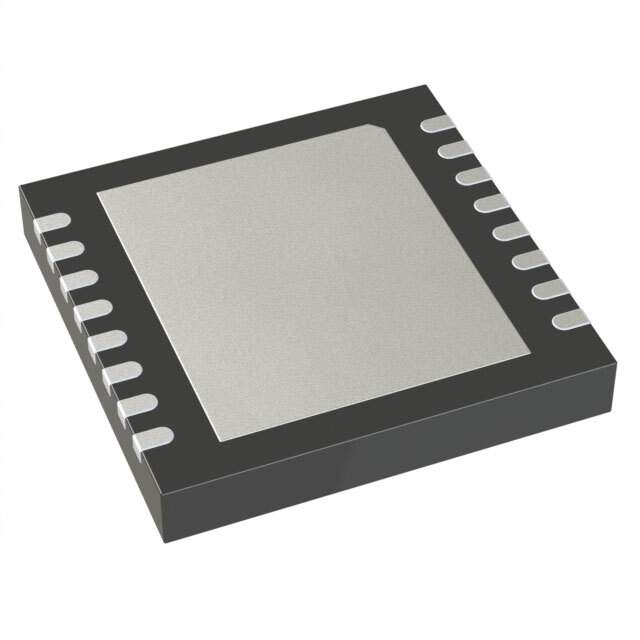

Designed with a compact footprint, the LT3021EDH-1.8#PBF comes in a 16-lead DFN package, which is suitable for space-constrained applications. The small size of the package does not compromise its thermal performance, as it is capable of dissipating heat effectively through the package to the surrounding PCB.

In summary, the LT3021EDH-1.8#PBF from Linear Technology is a reliable and efficient solution for applications that demand a high-quality power supply. Its low dropout voltage, low noise, and robust protection features make it a top choice for engineers looking to enhance the performance and stability of their electronic designs.
