The LT1585ACT-3.3 from Linear Technology is a high-performance, low dropout (LDO) linear voltage regulator that provides a fixed output voltage of 3.3V. This regulator is designed to deliver up to 3A of continuous output current with a dropout voltage of typically 1.5V at full load, making it an excellent choice for high-efficiency power supply applications.

Key Features:

• Output Voltage: Fixed 3.3V with high accuracy.
• Output Current: Capable of supplying up to 3A of continuous output current.
• Low Dropout Voltage: Typically 1.5V at full load, allowing for efficient operation even with low input-to-output voltage differentials.
• Stability: Stable with output capacitors as low as 10μF, providing flexibility in design.
• Protection Features: Includes overcurrent and overtemperature protection for safe operation under abnormal conditions.
• Adjustable Output: Output voltage is adjustable with the addition of external resistors.

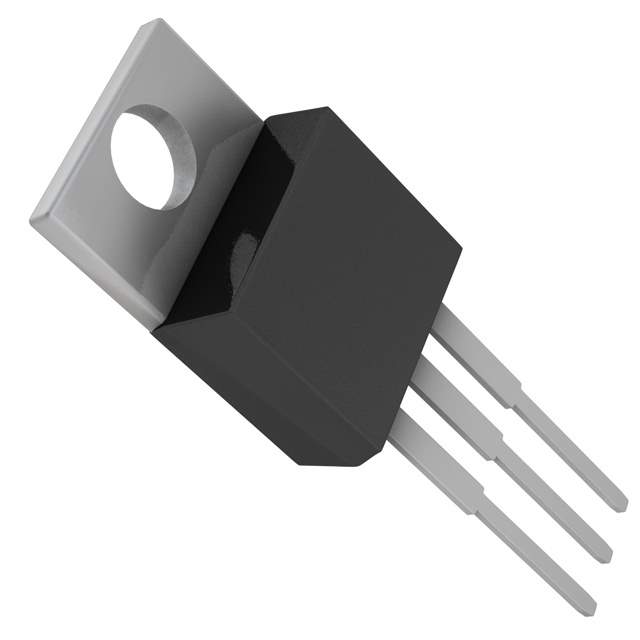

• Package: Available in the TO-220 package, which is suitable for through-hole mounting and is known for good thermal performance.

Applications:

The LT1585ACT-3.3 is ideal for a wide range of applications, including:

• Microprocessor and microcontroller power supplies
• Low-voltage logic supplies
• Battery-powered devices
• Linear power regulators for DC-DC convertors
• Post-regulation for switching supplies

Performance Benefits:

With its high current capability and low dropout performance, the LT1585ACT-3.3 ensures a reliable and consistent power supply for sensitive electronic components. The device's built-in protection features safeguard against conditions that could potentially damage the regulator or the powered device. Furthermore, its ease of use and minimal external component requirements make it a user-friendly choice for both novice and experienced engineers.

Whether for consumer electronics, industrial applications, or portable devices, the LT1585ACT-3.3 from Linear Technology stands out as a robust power management solution.
