LT1785ACS8#TRPBF - Linear Technology

The LT1785ACS8#TRPBF is a robust, low power, RS485/RS422 differential bus transceiver designed by Linear Technology to provide reliable data communication over long distances and in electrically noisy environments. This integrated circuit is specifically engineered to withstand the harsh conditions often found in industrial and networking applications.

Key Features:

• High Speed: Capable of data rates up to 2.5Mbps, making it suitable for high-speed data communication.
• Extended Common-Mode Range: The transceiver operates on a common-mode voltage range of -7V to +12V, exceeding the requirements of the RS485 and RS422 standards.
• Thermal Protection: The device includes thermal shutdown protection which prevents damage from overheating.
• Failsafe Receiver: The receiver has a failsafe feature that ensures a logic-high output if the inputs are open or shorted, or if they are connected to a terminated transmission line with no signal present.
• Driver and Receiver Enable: Separate enable pins for the driver and receiver allow the transceiver to be placed in a low power shutdown mode with high impedance outputs.
• Power Supply Range: The LT1785ACS8#TRPBF operates from a single 5V supply, making it easy to integrate into existing 5V systems.
• Robustness: The device features ±60V over-voltage protection on the transceiver bus pins, safeguarding the transceiver from electrical overstress.

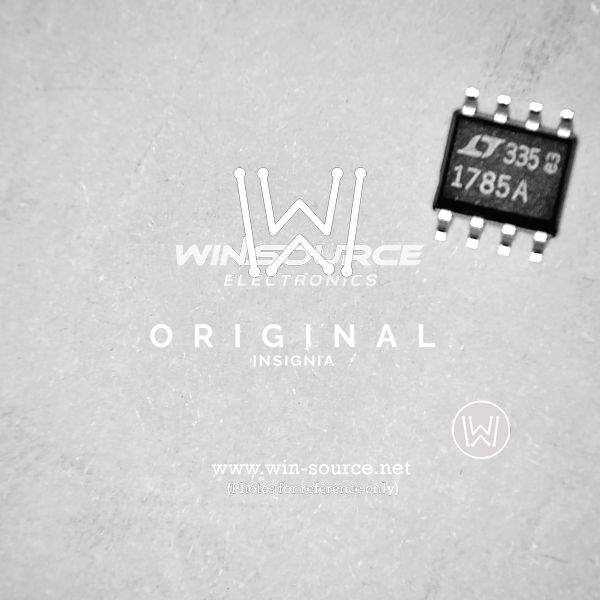

• Package: It comes in an 8-lead SOIC package, which is suitable for compact designs and meets the standard for surface-mount technology.

Applications:

The LT1785ACS8#TRPBF is ideal for a variety of applications, including:

• Industrial Control Systems
• Factory Automation
• Networked Devices in Electrically Noisy Environments
• Fieldbus Communications
• Data Acquisition Systems

With its combination of speed, robustness, and reliability, the LT1785ACS8#TRPBF from Linear Technology is an excellent choice for designers who require a high-performance transceiver capable of operating in challenging conditions.
