LT1963AEST-1.5#TRPBF - Low Noise, Fast Transient Response LDO Regulator

The LT1963AEST-1.5#TRPBF is a high-performance low dropout linear regulator (LDO) from Linear Technology, designed to deliver a continuous output current of up to 1.5A with a dropout voltage of typically 340mV at full load. This regulator is particularly suited for applications requiring low noise and fast transient response. It is an ideal choice for powering noise-sensitive circuits such as precision data converters, RF systems, and high-end audio applications.

This LDO operates with an input voltage range from 2.1V to 20V, which makes it versatile for a variety of power supply configurations. The fixed output voltage version, as indicated by the part number LT1963AEST-1.5#TRPBF, provides a stable 1.5V output, ensuring a reliable power source for your circuits.

The LT1963AEST-1.5#TRPBF boasts an impressive low noise performance, with only 40µVRMS across a 10Hz to 100kHz bandwidth, which significantly reduces the noise in sensitive applications. Furthermore, its fast transient response helps maintain output voltage stability under rapid load changes, which is critical for high-speed digital processors and other applications with dynamic power demands.

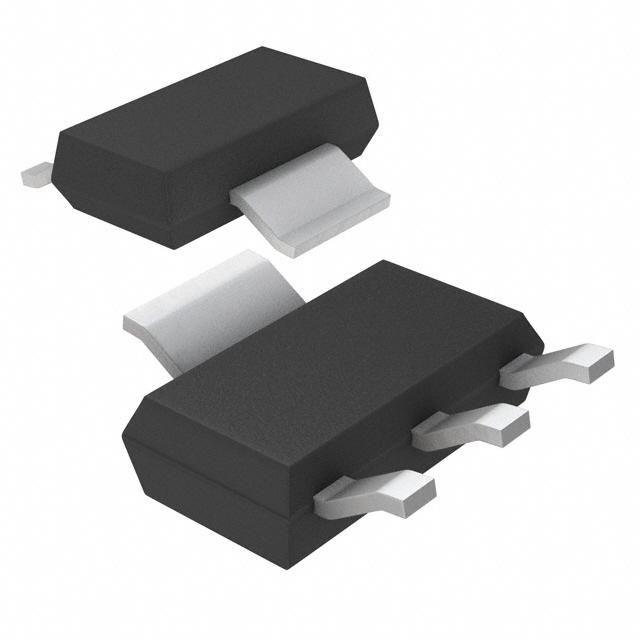

The device is encapsulated in a thermally efficient TSOT-23 package, which aids in heat dissipation and allows for compact circuit design. The LT1963AEST-1.5#TRPBF also features several protective functions, including overcurrent and overtemperature protection, ensuring safe operation under abnormal conditions.

For design flexibility, an external capacitor can be added to the regulator's ADJ pin to program the soft-start feature, which controls the ramp-up rate of the output voltage, thus reducing inrush current during startup. Additionally, the regulator is stable with output capacitors as low as 10µF, allowing for smaller and more cost-effective designs.

The LT1963AEST-1.5#TRPBF is available in tape and reel packaging, denoted by the suffix 'TRPBF', which facilitates automated manufacturing processes. With its robust feature set and high reliability, this LDO regulator is an excellent choice for demanding applications where voltage precision and stability are critical.
