The LT3015EMSE#TRPBF is a high-performance, low dropout negative linear regulator designed and manufactured by Linear Technology. It is a robust and reliable solution for applications requiring a stable and precise negative voltage supply. This component is particularly well-suited for industrial, automotive, and telecommunications equipment where the integrity of the power supply is critical.

Key Features:

• Output Voltage Range: The LT3015EMSE#TRPBF provides a wide output voltage range from -1.22V to -30V, making it versatile for various applications.
• Output Current: It is capable of delivering up to 1.5A of continuous output current, ensuring sufficient power for demanding loads.
• Low Dropout Voltage: The low dropout voltage of only 300mV at full load minimizes power dissipation and improves efficiency.
• Stable with Low ESR Capacitors: The regulator is stable with ceramic output capacitors, which are smaller, more reliable, and have lower equivalent series resistance (ESR) compared to other types.
• Protection Features: It includes overcurrent and overtemperature protection, safeguarding the device and the load from potential damage.
• Adjustable Output: The output voltage can be set with a single external resistor, providing design flexibility.
• Low Noise: With a low noise reference, the LT3015EMSE#TRPBF ensures a clean and stable voltage, critical for sensitive analog circuits and precision instrumentation.

Package and Availability:

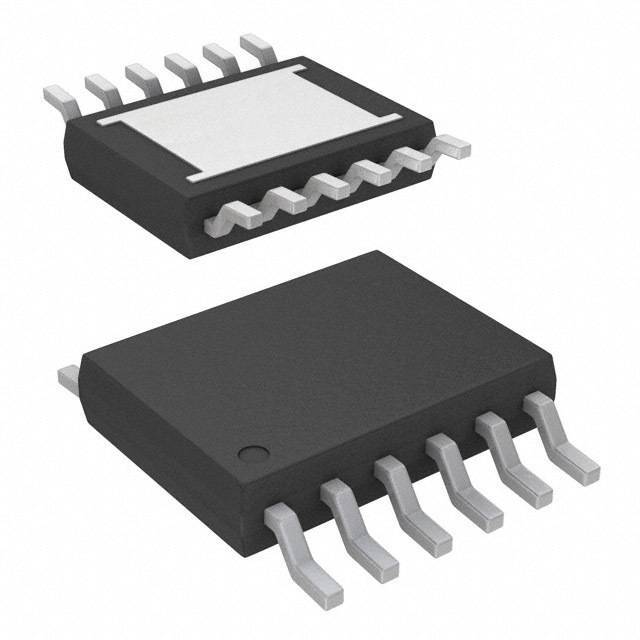

The LT3015EMSE#TRPBF comes in an MSOP-12 package, which is compact and suitable for space-constrained applications. The package is designed for surface-mount technology (SMT), enabling efficient assembly and soldering processes. This product is available in tape and reel packaging (denoted by the #TRPBF suffix), facilitating automated pick-and-place manufacturing.

Applications:

• Power Supplies for Operational Amplifiers
• Data Conversion Systems
• Automotive Electronics
• Telecommunications Infrastructure
• Industrial Instrumentation

With its robust design, comprehensive protection features, and high performance, the LT3015EMSE#TRPBF is an excellent choice for systems requiring a reliable negative voltage regulator.
