Linear Technology's LT3021EDH#TRPBF Low Dropout Linear Regulator

The LT3021EDH#TRPBF is a high-performance, low dropout linear regulator (LDO) from Linear Technology, designed to deliver continuous output current up to 500mA with a very low dropout voltage, making it an ideal choice for applications requiring efficient power conversion and regulation. The device operates over a wide input voltage range from 1.8V to 20V, providing the versatility needed to support various power sources and systems.

One of the standout features of the LT3021EDH#TRPBF is its low quiescent current, which is particularly beneficial for battery-powered applications where power conservation is crucial. The LDO ensures that the power consumption is minimized when the device is in standby mode, thereby extending the battery life of the end product.

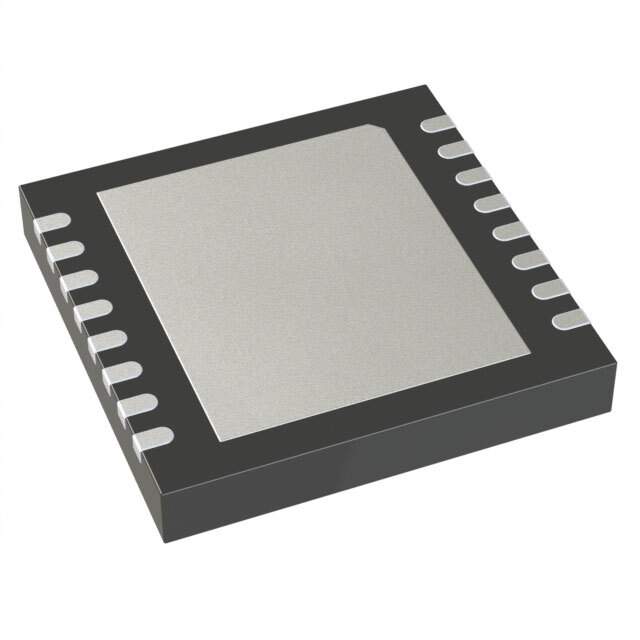

The LDO is encapsulated in a 16-lead DFN package, which is designed for a compact footprint and excellent thermal performance. This small form factor makes it an excellent choice for space-constrained applications without compromising on power handling capabilities. The LT3021EDH#TRPBF also features a wide operating temperature range, making it suitable for industrial and automotive applications where reliability under extreme conditions is a necessity.

Additional features of the LT3021EDH#TRPBF include overcurrent and overtemperature protection, which safeguard the device and the system against abnormal operating conditions. The LDO also offers adjustable output from 1.215V to 19.5V via external resistors, providing designers with the flexibility to tailor the output voltage to specific requirements of their application.

The regulator's fast transient response ensures stable operation during sudden changes in load, which is critical for maintaining consistent performance in digital systems and other sensitive electronic equipment. Furthermore, the LT3021EDH#TRPBF boasts a low noise performance, making it suitable for precision applications such as RF and analog circuits where clean power supply is essential.

In summary, the LT3021EDH#TRPBF from Linear Technology is a robust, versatile LDO that offers high efficiency, low quiescent current, and a compact package. It is an excellent choice for designers looking for a reliable power management solution that can meet the stringent requirements of a wide range of applications.
