Product Overview: LT3032EDE#TRPBF

The LT3032EDE#TRPBF is a dual-channel, low-noise, low-dropout voltage linear regulator crafted by Linear Technology, a brand renowned for its high-performance analog integrated circuits. This product is specifically designed to cater to applications requiring separate positive and negative outputs with tight regulation specifications and operational reliability.

Key Features

• Dual Output Voltages: The LT3032 offers two independent voltage outputs, one positive and one negative, making it ideal for split-supply applications.
• Low Dropout Voltage: With a low dropout voltage of only 300mV at full load, the LT3032 ensures efficient operation even when the input-to-output differential is minimal.
• Low Noise: This regulator boasts an exceptionally low output noise, making it suitable for sensitive RF supply applications and precision instrumentation.
• Wide Output Current Range: The device provides up to 150mA of output current for each channel, accommodating a broad spectrum of load requirements.
• Adjustable Output Voltage: The output voltage can be set from ±1.22V to ±20V with external resistors, offering flexibility for various design needs.
• High Accuracy: The LT3032 provides excellent regulation with a high accuracy of ±2% over line, load, and temperature.

Package and Reliability

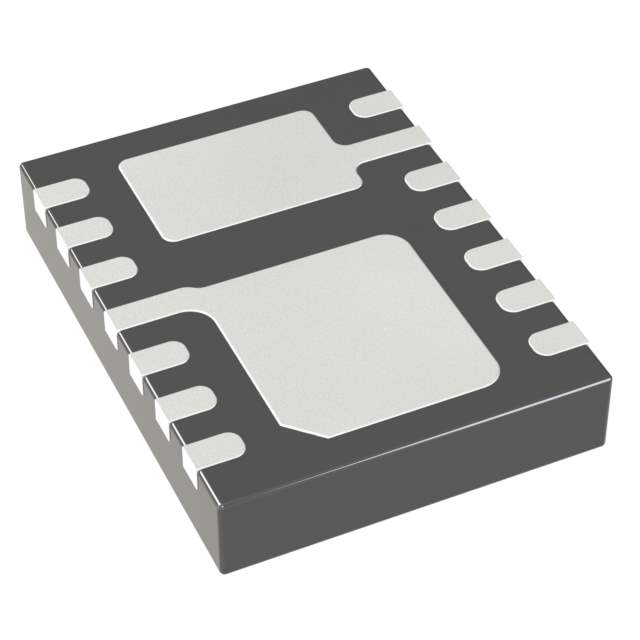

The LT3032EDE#TRPBF comes in a compact, thermally efficient 14-lead DFN package, which is suitable for space-constrained applications while providing robust thermal performance. The device also features built-in protection mechanisms such as overcurrent and overtemperature protection, enhancing its reliability and longevity in demanding environments.

Applications

This versatile regulator is perfect for powering operational amplifiers, data conversion devices, and other mixed analog/digital circuits that require a clean, stable power supply. It is widely used in battery-powered equipment, portable medical devices, and industrial control systems, among others.

In summary, the LT3032EDE#TRPBF from Linear Technology is a high-quality, dual-channel linear regulator that offers precision, low noise, and high reliability for a wide range of applications.
