The LT6106CS5#TRPBF is a high-performance, high-side current sense amplifier designed by Linear Technology to address the need for accurate current measurement in a wide range of applications. This device is capable of monitoring current via the voltage across an external sense resistor, placed in the path of the current to be measured.

Key Features:

• Wide Input Voltage Range: The LT6106 is designed to operate with a supply voltage ranging from 4V to 60V, making it suitable for many applications including automotive and industrial systems.
• Low Offset Voltage: It boasts a low input offset voltage, which enhances the accuracy of current measurement without requiring complex calibration.
• High Accuracy: With its precision circuitry, the LT6106 provides a high level of accuracy in current sensing, which is critical for system monitoring and control.
• Adjustable Gain: The gain of the LT6106 can be adjusted with external resistors, allowing users to configure the device for various current ranges and applications.
• Wide Operating Temperature Range: This current sense amplifier operates over a temperature range of -40°C to 125°C, ensuring reliable performance in harsh environments.

Applications:

• Automotive battery monitoring
• Power management systems
• Overcurrent protection
• Portable equipment
• Industrial control systems

Product Description:

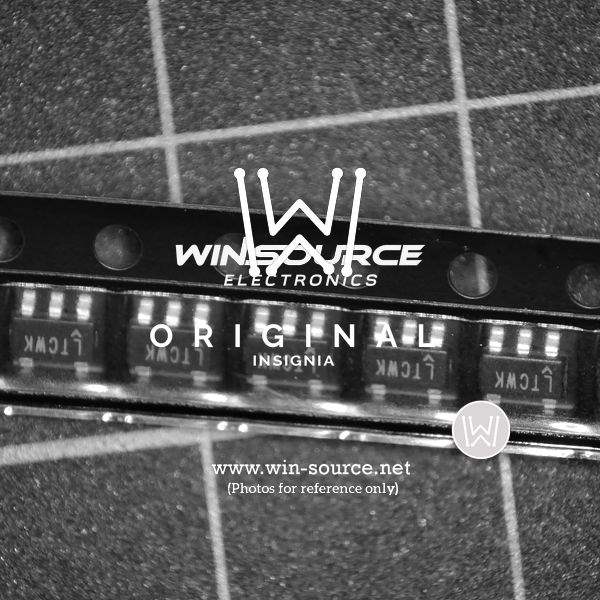

The LT6106CS5#TRPBF comes in a compact SOT-23 package, which is ideal for space-constrained applications. It is designed to interface easily with microcontrollers or analog-to-digital converters for digital system integration. The device's robust design includes protection against reverse battery conditions, enhancing its reliability in systems where incorrect power connections may occur. The LT6106's high-side measurement capability allows for ground-referenced loads, which simplifies system design and enhances safety by avoiding common-mode noise and ground disturbances.

Linear Technology's LT6106CS5#TRPBF is a versatile and robust solution for high-side current sensing in a broad array of applications, providing both precision and ease of use for engineers and designers.
