LTC3129IUD-1#PBF: High-Efficiency, 200mA Buck-Boost DC/DC Converter

The LTC3129IUD-1#PBF is a versatile, high-efficiency, 200mA buck-boost DC/DC converter designed by Linear Technology to meet the demands of a wide range of power supply applications. This component ensures a continuous transition between buck and boost modes, providing a stable output voltage even when the input voltage crosses over the output voltage level.

This DC/DC converter is capable of delivering up to 200mA of continuous output current at output voltages from 1.8V to 5.5V from a single power source with an input voltage range of 1.6V to 5.5V. This makes it an ideal choice for multi-cell or single-cell Li-Ion/Polymer, or other battery chemistries, where the output voltage is within the battery voltage range throughout its discharge cycle.

One of the key features of the LTC3129IUD-1#PBF is its high efficiency, which can be up to 95%, thanks to its 1.3MHz fixed-frequency operation and Burst Mode® operation that reduces quiescent current to just 1.6µA, improving battery life in portable applications. The device also includes soft-start capability, which limits inrush current during startup, thereby reducing surge stresses.

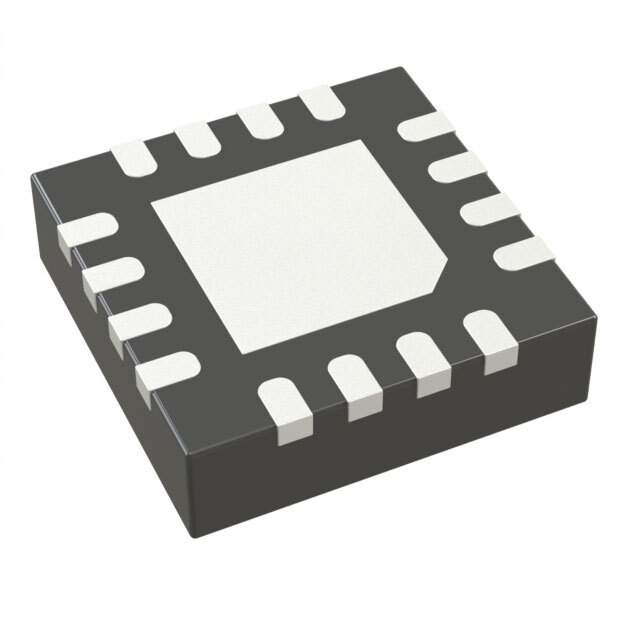

The LTC3129IUD-1#PBF comes in a compact, thermally efficient 16-lead QFN package, making it suitable for space-constrained applications. It also features a range of built-in protection features, including over-temperature protection, short-circuit protection, and output disconnect, which safeguards the device and the application circuitry under adverse conditions.

With its adjustable output voltage and a wide array of user-configurable options via external components, the LTC3129IUD-1#PBF provides designers with flexibility to tailor the converter to meet specific design requirements. This, combined with its robust performance characteristics, makes it an excellent choice for portable devices, backup power supplies, and energy harvesting systems, among others.

Overall, the LTC3129IUD-1#PBF is a high-quality power management solution that delivers reliability and performance, ensuring efficient power conversion for a variety of electronic devices.
