Introducing the LTC3545IUD#PBF from Linear Technology

The LTC3545IUD#PBF is a high-performance, triple-channel, synchronous buck regulator designed by Linear Technology, a brand synonymous with precision, reliability, and efficiency in power management solutions. This compact, integrated circuit is engineered to deliver continuous output currents of 800mA, 800mA, and 400mA from each of its three channels, respectively, making it an ideal choice for portable and space-constrained applications.

Constructed with advanced process technology, the LTC3545 features a wide input voltage range from 2.25V to 5.5V, allowing it to accommodate a variety of power sources including single-cell lithium-ion batteries, multi-cell alkaline batteries, and regulated 5V supplies. Each channel has independent enable pins, providing designers with the flexibility to optimize power consumption by selectively activating individual regulators as needed.

The device operates with a constant frequency current mode architecture, which ensures stable operation over a wide range of supply and output voltages. The high switching frequency of up to 2.25MHz allows for the use of small, low-cost capacitors and inductors, further reducing the overall solution footprint. Additionally, the LTC3545IUD#PBF incorporates internal synchronous rectification, which enhances efficiency by eliminating the need for external Schottky diodes and reduces power loss.

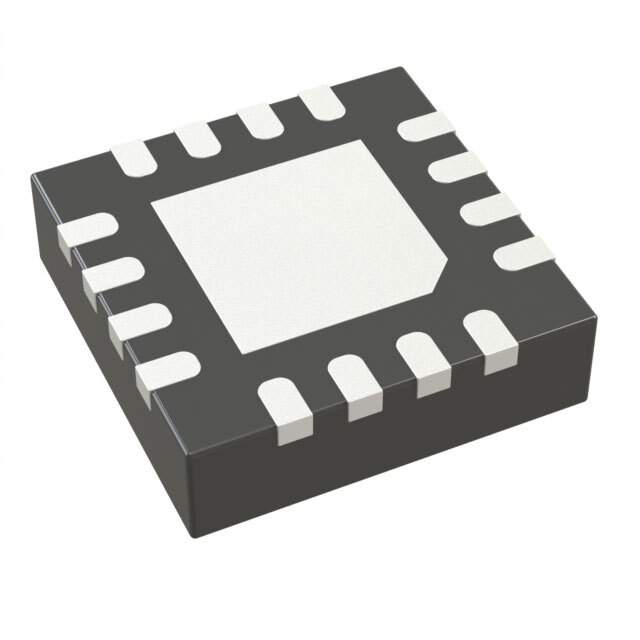

To ensure the protection and longevity of your application, the LTC3545IUD#PBF comes with a comprehensive suite of features including over-temperature protection, over-current protection, and a power good status output that can be used for power sequencing and fault monitoring. The device is available in a compact, thermally efficient 20-lead QFN package, making it suitable for a wide range of applications, such as handheld devices, portable media players, and other battery-powered gadgets.

Linear Technology's LTC3545IUD#PBF is a testament to the company's commitment to delivering high-quality power management solutions. It offers designers a robust, efficient, and space-saving option for their multi-channel power supply needs, ensuring stable performance and extended battery life in their products.
