LTC3611IWP#PBF High Efficiency, Monolithic Synchronous Step-Down DC/DC Converter

The LTC3611IWP#PBF is a high-performance, monolithic synchronous step-down DC/DC converter manufactured by Linear Technology, now part of Analog Devices. This component is designed to deliver high efficiency, excellent thermal performance, and a compact footprint, making it an ideal choice for a wide range of power supply applications.

Featuring a wide input voltage range of 4.5V to 24V, the LTC3611IWP#PBF is versatile enough to handle various input sources, including standard 5V, 12V, and even intermediate bus voltages. This flexibility makes it suitable for diverse applications such as telecommunications, networking, industrial, and automotive systems.

The LTC3611IWP#PBF utilizes a constant frequency, current mode architecture, which provides fast transient response and excellent loop stability. It is capable of delivering up to 12A of continuous output current at voltages as low as 0.6V, allowing it to power the latest low voltage, high current processors and FPGAs. The high switching frequency of up to 4MHz enables the use of small surface mount inductors and capacitors, reducing the overall solution size and making it a great choice for space-constrained applications.

With its integrated high-side and low-side N-channel MOSFETs, the LTC3611IWP#PBF achieves efficiencies up to 95%, reducing power loss and improving system reliability. The device also offers selectable Burst Mode® operation, which enhances efficiency at light loads by reducing quiescent current.

For added flexibility, the LTC3611IWP#PBF features programmable soft-start, a power good voltage monitor, external synchronization capability, and output voltage tracking. This level of control allows for a tailored startup sequence and integration with other power management components in complex systems.

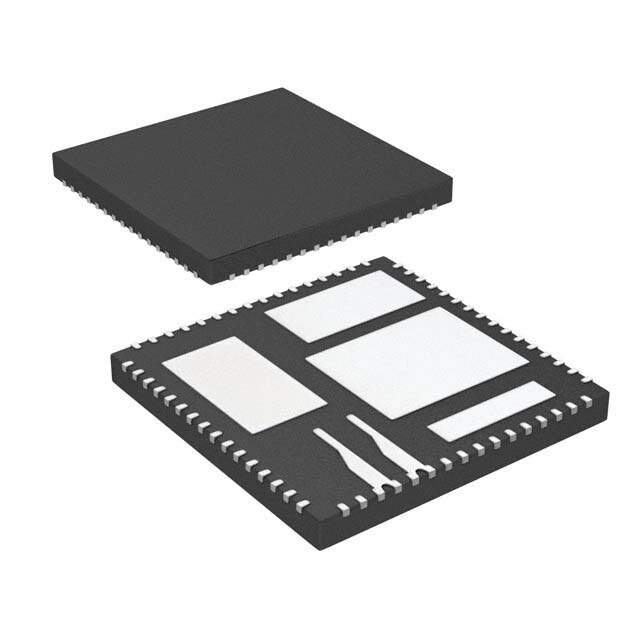

Designed to operate in harsh environments, the LTC3611IWP#PBF is specified for the industrial temperature range of -40°C to 125°C. The device is housed in a thermally enhanced 64-pin QFN package, which provides excellent heat dissipation and space-saving benefits.

In summary, the LTC3611IWP#PBF from Linear Technology is a powerful, efficient, and versatile step-down converter that meets the demands of modern electronic systems with its high current capability, compact design, and robust performance.
