Product Overview: LTC3861EUHE#TRPBF

The LTC3861EUHE#TRPBF is a high-performance, dual output synchronous step-down DC/DC controller from Linear Technology, now part of Analog Devices. This advanced controller is designed to drive all N-channel power MOSFET stages in a phase-lockable fixed frequency architecture, ensuring precise control and high efficiency in power conversion applications.

Key Features:

• Wide Input Voltage Range: The LTC3861 operates over a 4.5V to 38V input voltage range, accommodating a variety of supply voltages and enabling its use in a range of applications, including automotive, industrial, and telecommunications systems.
• Output Voltage: It can produce an output voltage range from 0.6V to 14V, which is suitable for most low voltage power requirements in modern electronic devices.
• Current Mode Operation: The device employs current mode control which provides excellent transient response and cycle-by-cycle current limiting.
• Phase-Lockable Frequency: The LTC3861 has a phase-lockable frequency of 250kHz to 770kHz, allowing for noise-sensitive applications to minimize electromagnetic interference (EMI).
• Powerful Drivers: It features powerful 1.1Ω on-chip gate drivers designed to minimize switching losses by driving MOSFETs efficiently at high frequencies.
• Dual Output: The controller supports dual outputs, which can be used in parallel for high current applications or independently to power different circuits.
• Protection Features: It includes overvoltage protection, undervoltage lockout, and thermal shutdown for enhanced system reliability.

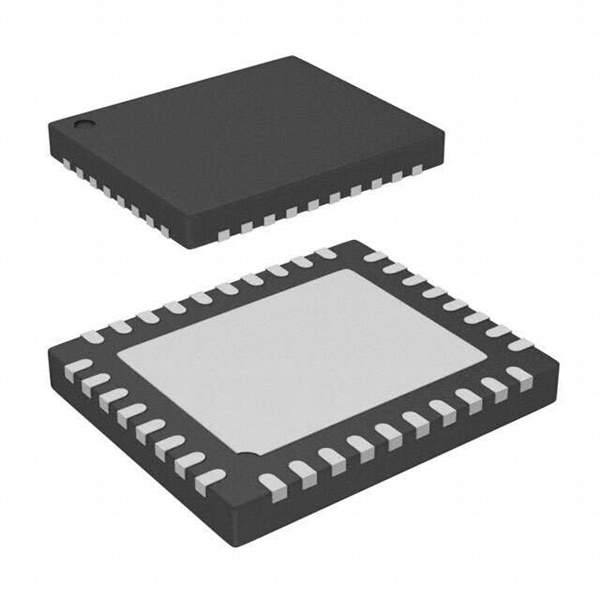

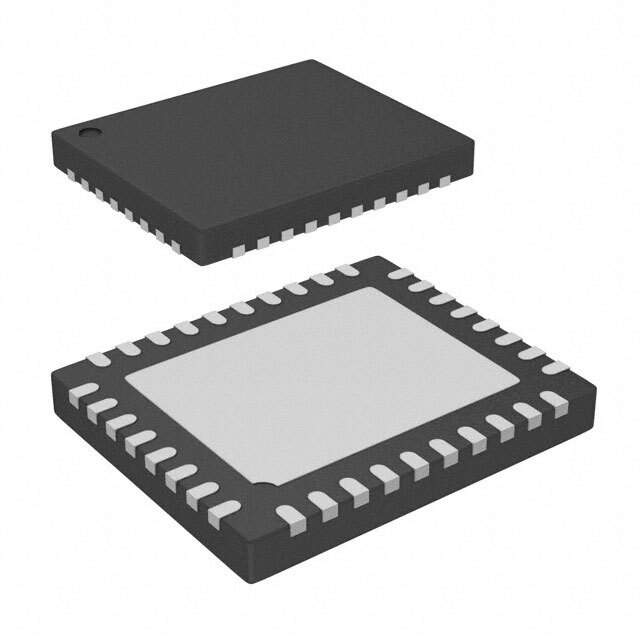

• Package: The LTC3861EUHE#TRPBF is offered in a 36-lead QFN package, which is compact and suitable for space-constrained applications.

Applications:

The LTC3861EUHE#TRPBF is ideal for a variety of applications that require efficient power management and distribution. It is commonly used in:

• Telecommunications Infrastructure
• Automotive Power Systems
• Industrial Supplies
• Datacom and Storage Systems
• High Density Distributed Power Systems

This product is a testament to Linear Technology's commitment to providing innovative solutions for complex power management challenges. The LTC3861EUHE#TRPBF is not only versatile but also reliable, making it a top choice for engineers and designers looking to optimize their power systems for performance and efficiency.
