LTM4627EV#PBF

Part No LTM4627EV#PBF
Manufacturer Linear Technology
Catalog Power Supplies Board Mount DCDC Converters
Description IC UMODULE DC/DC 15A 133LGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Linear Technology
Packaging Tray
Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Minimum Input Voltage 4.5V
Maximum Input Voltage 20V
Nominal Output Voltage 1 0.6 to 5 V
Current - Output (Max) 15A
Applications ITE (Commercial)
Features OCP, OVP
Temperature Range - Operating -40°C to 125°C
Efficiency 93%
Mounting SMD (SMT)
Dimension 0.59" L x 0.59" W x 0.17" H (15.0mm x 15.0mm x 4.3mm)

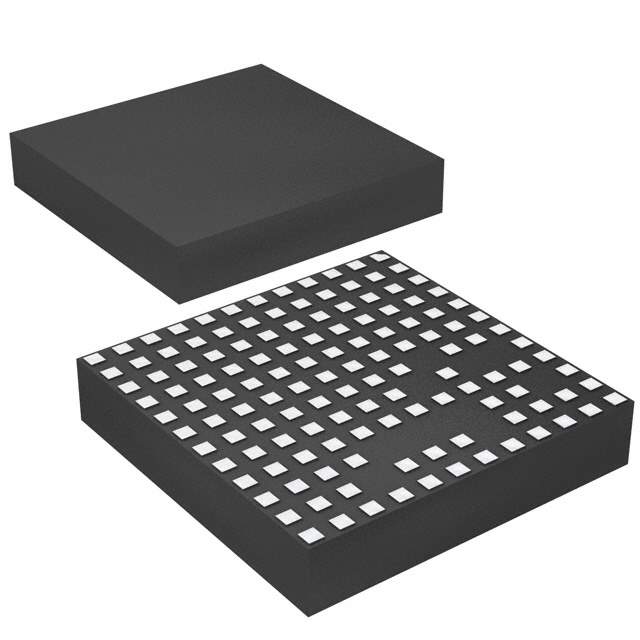

Case / Package 133-LGA (15x15)
Win Source Part Number 206791-LTM4627EV
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LTM4627EV#PBF CAD Model

Description

Linear Technology's LTM4627EV#PBF Micro Module Regulator

The LTM4627EV#PBF is a high-performance micro module (μModule) step-down regulator from Linear Technology, designed to deliver precision, efficiency, and versatility in a compact package. This advanced power solution is ideal for applications requiring a small footprint without sacrificing performance, such as telecommunications, networking, industrial systems, and portable devices.

Key Features

  • High Efficiency: The LTM4627EV#PBF operates with a high level of efficiency, which is critical for thermal management and energy savings in dense system designs.
  • Wide Input Voltage Range: This regulator supports an input voltage range of 4.5V to 20V, making it suitable for a variety of supply voltages.
  • Adjustable Output Voltage: Output voltage can be precisely adjusted from 0.6V to 5.5V, allowing for use in a wide array of low voltage applications.
  • Compact Size: Encased in a 6.25mm x 6.25mm x 5.01mm BGA package, the LTM4627EV#PBF saves precious board space while providing robust power management.
  • Integrated Components: It integrates the inductor, power switches, and all supporting components, simplifying design and reducing external component count.

Advanced Technologies

The LTM4627EV#PBF leverages Linear Technology's advanced technologies to ensure reliable and stable operation. It features constant frequency, current mode control for fast transient response and good loop stability. Additionally, overvoltage, overcurrent, and overtemperature protection mechanisms are built in to safeguard the device and the system it powers.

Design Flexibility

Designers will appreciate the flexibility of the LTM4627EV#PBF, which includes selectable Burst Mode® operation for improved efficiency at light loads and SYNC input for noise-sensitive applications. The device also offers up to 15A of continuous output current, making it capable of powering demanding loads.

Overall, the LTM4627EV#PBF is a testament to Linear Technology's commitment to providing innovative, space-efficient, and high-performance power management solutions. Its combination of power density, ease of use, and reliability makes it an excellent choice for modern electronic systems.
