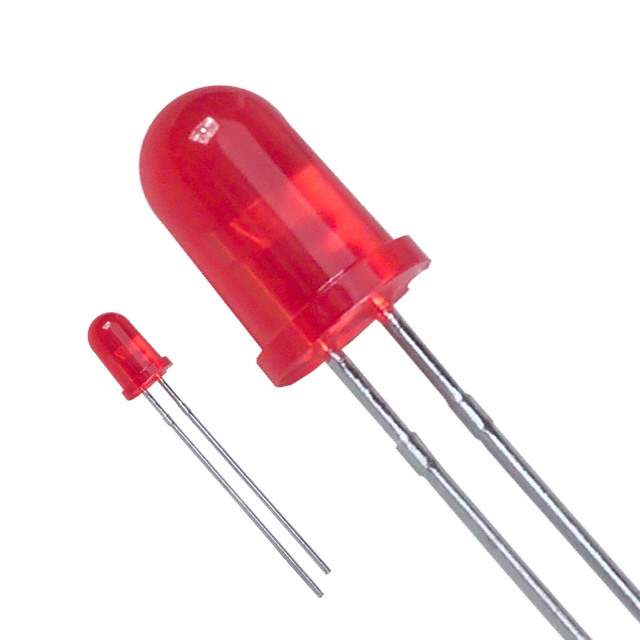

The Lite-On Inc. LTL-307P is a red colored through-hole LED with a standard configuration. It has a viewing angle of 50 degrees and a diffused lens transparency.

• Millicandela Rating: The LED has a millicandela rating of 5.6mcd and a test current of 20mA.
• Wavelength: The dominant wavelength of the LED is 657nm while the peak wavelength is 697nm.
• Package: The device is packaged in a T-1 3/4 supplier device package with a round domed top lens style and a lens size of 5mm.
• Dimensions: The maximum height of the device is 8.60mm, and it comes in a radial package.
• Application: The Lite-On Inc. LTL-307P LED is suitable for various optoelectronic applications.
