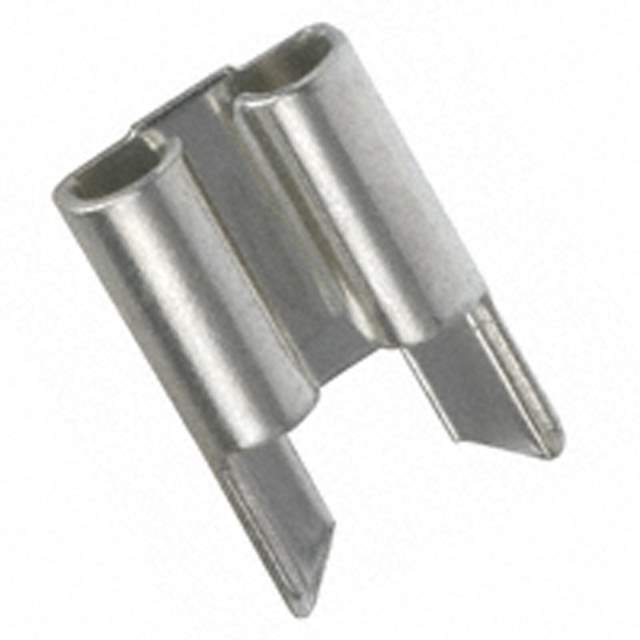

01000057H Real Image
Same model may have multiple batches, images only for reference.

01000057H

Part No 01000057H
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE CLIP BLADE 125V 15A PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Part Status Obsolete (End Of Life)
Fuseholder Type Clip
Fuse Type Blade
For Use With/Related Products ATC, ATO
Fuse Size 0.75" L x 0.2" W x 0.74" H (19.1mm x 5.1mm x 18.8mm)
Number of Circuits 1
Voltage 125V
Current Rating (Amps) 15A
Mounting Style Through Hole
Orientation Vertical
Termination Style PC Pin
Contact Material Spring Brass
Contact Finish Tin
Manufacturer Pack Quantity 100
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807220-01000057H
Ultra Librarian 3D Model Ultra Librarian 01000057H CAD Model

Description

The 807220-01000057H is a one-circuit blade fuseholder clip manufactured by Littelfuse Inc. Littelfuse Inc.

  • Mounting Style: Through-hole
  • Termination Style: PC pin
  • Contact Finish: Tin
  • Contact Material: Spring Brass
  • Compatible Products: ATC and ATO
  • Fuse Size: 0.75" L x 0.2" W x 0.74" H (19.1mm x 5.1mm x 18.8mm)
  • Voltage Rating: 125V
  • Orientation: Vertical
  • Status: Obsolete (end of life)
  • Supply and Demand Status: Balanced
  • Package Quantity: 100
