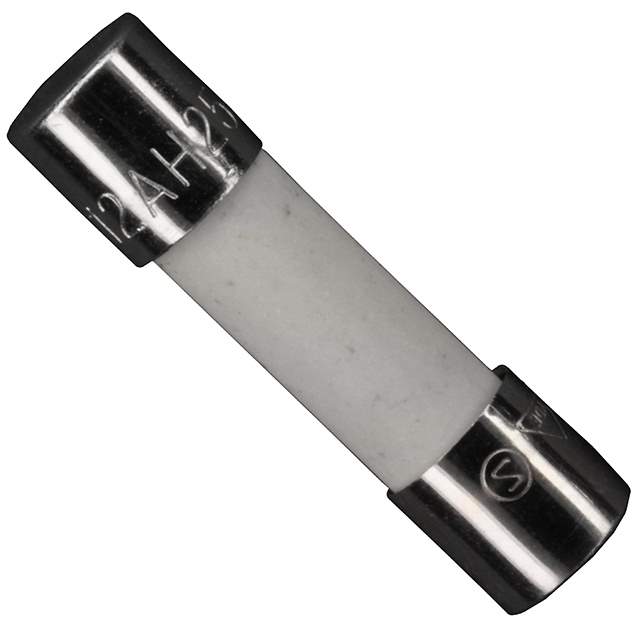

0215001.MXP Real Image
Same model may have multiple batches, images only for reference.

0215001.MXP

Part No 0215001.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description 215 Series, 5 x 20 mm, Time-Lag (Slo-Blo®) Fuse | FUSE CERAMIC 1A 250VAC 5X20MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 1A
Voltage Rating - AC 250V
Response Time Slow Blow
Manufacturer Package 5mm x 20mm
Mounting Style Holder
Breaking Capacity at Rated Voltage 1.5kA
Melting I2t 1.52
Approvals CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE
Temperature Range - Operating -55°C ~ 125°C
Parts Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.1515 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1120490-0215001.MXP
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0215001.MXP CAD Model

Description

The 1120490-0215001.MXP is a slow blow cartridge ceramic fuse from Littelfuse Inc. designed for use in circuit protection.

  • Voltage Rating: 250V
  • Current Rating: 1A
  • DC Cold Resistance: 0.1515 Ohms
  • Breaking Capacity: 1.5kA @ rated voltage
  • Approvals: CCC, CE, CSA, KC, PSE, SEMKO, UL, and VDE
  • Package: Bulk
  • Manufacturer Pack Quantity: 1,000
  • Supply and Demand Status: Balanced
  • MSL Level: 1 (Unlimited)
  • Parts Dimension: 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
