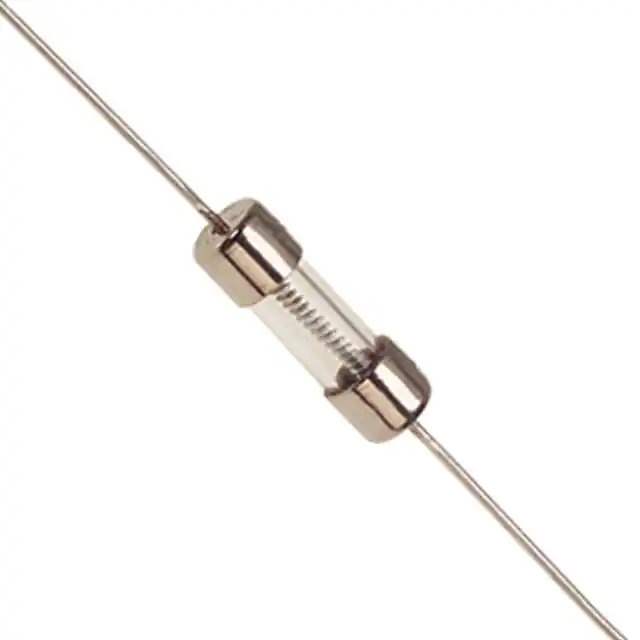

Same model may have multiple batches, images only for reference.

0230002.MXP

Name: 0230002.MXP
Brand: Littelfuse Inc.
SKU: 850066
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0230002.MXP
Manufacturer	Littelfuse Inc.
Catalog	Fuses
Description	FUSE GLASS 2A 250VAC 125VDC AXL
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Fuses
Mfr	Littelfuse Inc.
Series	230
Package	Bulk
Product Status	Active
Mounting Type	Through Hole
Fuse Type	Cartridge, Glass
Current Rating (Amps)	2 A
Voltage Rating - AC	250 V
Voltage Rating - DC	125 V
Response Time	Slow Blow
Package / Case	Cartridge, Non-Standard (Axial)
Breaking Capacity @ Rated Voltage	35A AC, 10kA DC
Melting I2t	30
Approval Agency	CE, CSA, PSE, UL
Temperature Range - Operating	-55°C ~ 125°C
Size / Dimension	0.177" Dia x 0.571" L (4.50mm x 14.50mm)
DC Cold Resistance	0.0698 Ohms
Standard Package	1,000 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.10.0020
California Prop 65	Warning Information
Win Source Part Number	850066-0230002.MXP
Ultra Librarian 3D Model	Ultra Librarian 0230002.MXP CAD Model

Alternative Products

Description

The 850066-0230002.MXP is a cartridge glass fuse from the 230 series. Bold: 850066-0230002.MXP and Littelfuse Inc..

Voltage Rating (AC): 250V (AC)
Voltage Rating (DC): 125V (DC)
Response Time: Slow Blow
Breaking Capacity (AC): 35A (AC)
Breaking Capacity (DC): 10kA (DC) @ rated voltage
Melting I2t: 30
Size / Dimension: 0.177" Dia x 0.571" L (4.50mm x 14.50mm)
DC Cold Resistance: 0.0698 Ohms
Mounting Type: Through Hole
Package: Bulk
Operating Temperature: -55°C to 125°C
Manufacturer: Littelfuse Inc.
Product Status: Active
Approvals: CE, CSA, PSE, and UL
