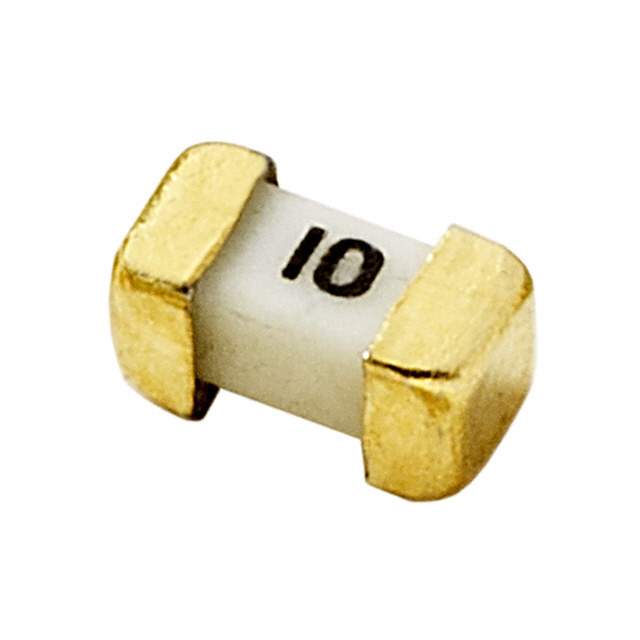

045801.5DR

Part No 045801.5DR
Manufacturer Littelfuse Inc.
Catalog Fuses
Description Surface Mount Fuses | FUSE BOARD MNT 1.5A 48VAC 75VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1.5A
Voltage Rating - AC 48V
Voltage Rating - DC 75V
Response Time Fast Blow
Manufacturer Package 1206
Mounting Style SMD
Breaking Capacity at Rated Voltage 50A
Melting I2t 0.548
Approvals cULus
Temperature Range - Operating -55°C ~ 125°C
Parts Dimension 0.125" L x 0.062" W x 0.062" H (3.18mm x 1.58mm x 1.58mm)
DC Cold Resistance 0.099 Ohms
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1120657-045801.5DR
Manufacturer Homepage www.littelfuse.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 045801.5DR CAD Model

Description

045801.5DR from Littelfuse Inc. is a fuse designed for circuit protection in electronic systems where limiting overcurrent damage is essential. Components in this category are commonly selected for power input stages, embedded control boards, consumer electronics, industrial equipment, and other designs that require a sacrificial protection element to help reduce downstream failure risk. Engineers typically consider Littelfuse fuses for their broad market acceptance, established protection portfolio, and suitability for both new designs and maintenance sourcing. For buyers and design teams, this part is best evaluated alongside the latest manufacturer datasheet to confirm electrical ratings, package details, and installation requirements. The current lifecycle status for 045801.5DR is information not available from the provided input, so supply continuity should be verified before committing it to long-term programs. RoHS compliance status is also information not available here; engineers and compliance teams should request current manufacturer documentation before release to production or regulated-market shipment.
