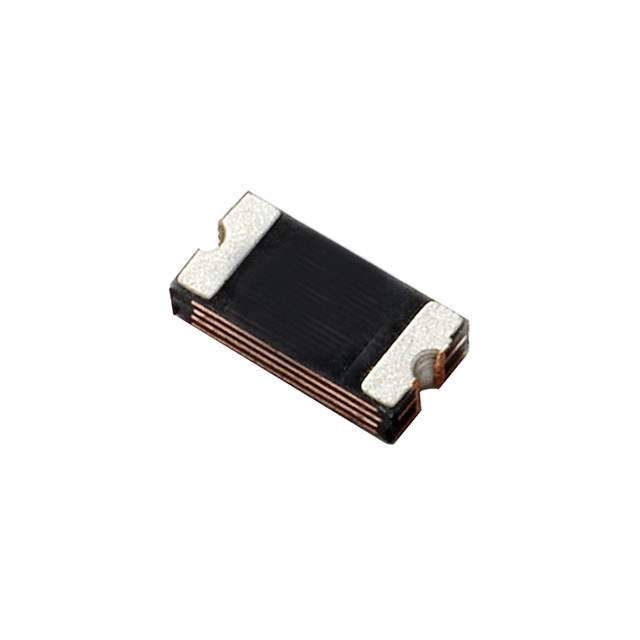

1206L035/30WR

Name: 1206L035/30WR
Brand: Littelfuse Inc.
SKU: 976841
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1206L035/30WR
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 30V 350MA 1206 / Polymeric PTC Resettable Fuse 30V 350 mA Ih Surface Mount 1206 (3216 Metric), Concave
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	POLY-FUSE®, 1206L
Package	Tape & Reel
Type	Polymeric
Voltage - Max	30V
Current - Max	100 A
Current - Hold (Ih) (Max)	350 mA
Current - Trip (It)	750 mA
Time to Trip	100 ms
Resistance - Initial (Ri) (Min)	300 mOhms
Resistance - Post Trip (R1) (Max)	1.2 Ohms
Temperature Range - Operating	-40°C ~ 85°C
Ratings	AEC-Q200
Mounting	SMD (SMT)
Package / Case	1206 (3216 Metric), Concave
Dimension	0.126" L x 0.065" W (3.20mm x 1.65mm)
Thickness (Max)	0.039" (1.00mm)
Approval Agency	cURus, TUV
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.40.8070
Other Names	18-1206L035/30WRCT,18-1206L035/30WRTR,F8473TR,F8473TR-ND,18-1206L035/30WRDKR
Standard Package	3,000
Win Source Part Number	976841-1206L035/30WR
Ultra Librarian 3D Model	Ultra Librarian 1206L035/30WR CAD Model

Alternative Products

Description

The Littelfuse Inc. 976841-1206L035/30WR is a polymeric type PTC resettable fuse in tape and reel packaging.

Series: POLY-FUSE® 1206L
Rating: AEC-Q200
Height - Seated (Max): Not specified
Lead Spacing: Not specified
Package: 3,000
Mounting Style: SMD (SMT)
Thickness (Max): 0.039" (1.00mm)
Voltage-Maximum: 30V
Current-Maximum: 100 A
Current Hold: 350 mA (maximum)
Current Trip: 750 mA
Time to Trip: 100 ms
Package/Case: 1206 (3216 Metric), Concave
Operating Temperature Range: -40°C to 85°C
Dimension: 0.126" L x 0.065" W (3.20mm x 1.65mm)
Initial Resistance (Ri): 300 mOhms
Post-Trip Resistance (R1): 1.2 Ohms
