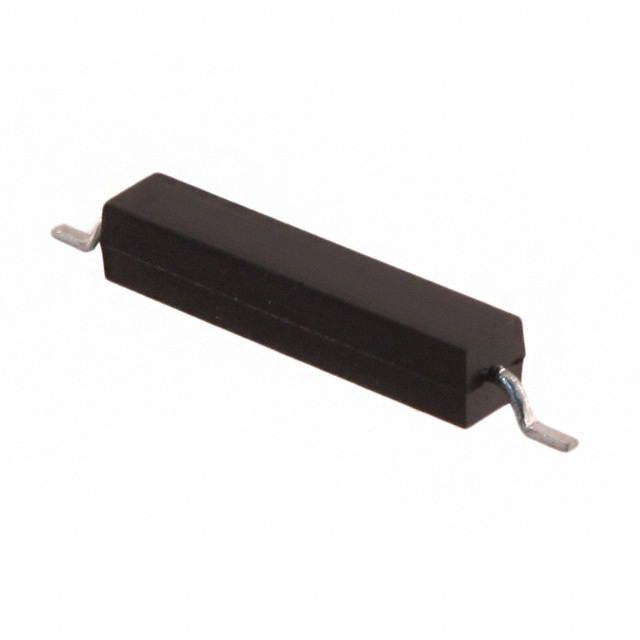

Same model may have multiple batches, images only for reference.
59170-1-S-00-C Littelfuse Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

59170-1-S-00-C

Part No 59170-1-S-00-C
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 350MA 140V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category SwitchesMagnetic, Reed Switches
Manufacturer Littelfuse Inc.
Series 59170
Packaging Bulk
Part Status Active
Type Molded Body Reed
Circuit SPST-NO
Operate Range 10 ~ 15AT
Current - Switching 350mA (AC), 500mA (DC)
Voltage - Switching AC 140 V
Voltage - Switching DC 200 V
Power - Rated 10W
Operate Time 1 ms
Release Time 0.5 ms
Mounting Type Surface Mount
Termination Style Gull Wing
Length - Overall 0.640" (16.26mm)
Size - Body 0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm)
Height Above Board 0.095" (2.41mm)
Operating Temperature -40°C ~ 125°C
Capacitance 0.3 pF
Current - Carry 800mA (DC)
Ultra Librarian 3D Model Ultra Librarian 59170-1-S-00-C CAD Model
