Same model may have multiple batches, images only for reference.

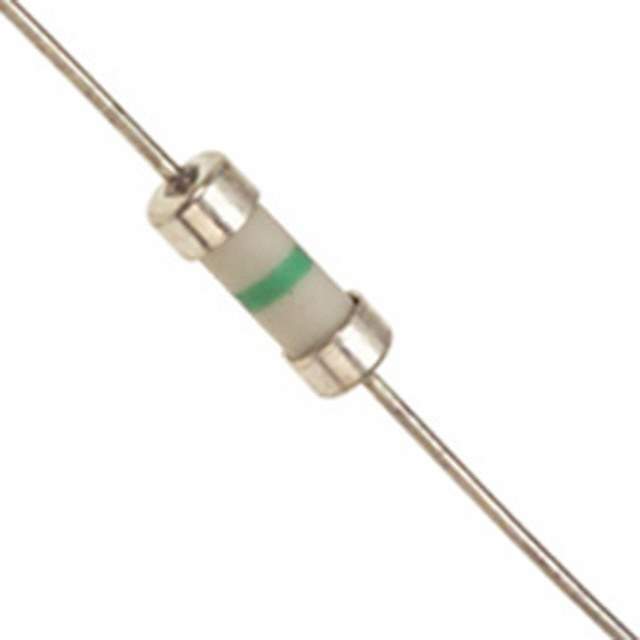

0242.080UAT1 Real Image
Same model may have multiple batches, images only for reference.

0242.080UAT1

Part No 0242.080UAT1
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CRTRDGE 80MA 250VAC/VDC AXL / 80mA 250 V AC 250 V DC Fuse Cartridge Through Hole
Datasheet
0242.080UAT1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Manufacturer Littelfuse Inc.
Packaging Cut Tape (CT),Tape & Box (TB)
Mounting Through Hole
Fuse Type Cartridge
Current Rating (Amps) 80mA
Voltage Rating - AC 250 V
Voltage Rating - DC 250 V
Response Time Fast Blow
Applications Hazardous Locations
Features Intrinsically Safe
Approval Agency cURus
Temperature Range - Operating -40°C ~ 125°C
Breaking Capacity @ Rated Voltage 4kA
Case / Package Axial
Size / Dimension 0.119" Dia x 0.331" L (3.02mm x 8.40mm)
Melting I2t 0.000214
DC Cold Resistance 8.19 Ohms
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0040
Other Part Number 0242080UAT1,F1291TB,F1291TR,-0242.080UAT1,0242.080,1294-0242.080UAT1,F1291CT
Standard Package 500
Win Source Part Number 1334690-0242.080UAT1
Ultra Librarian 3D Model Ultra Librarian 0242.080UAT1 CAD Model

Description

The Littelfuse Inc. 1334690-0242.080UAT1 is a fast-blow cartridge fuse designed for use in hazardous locations.

  • Voltage Rating: 250 V AC/DC
  • Breaking Capacity: 4kA @ rated voltage
  • DC Cold Resistance: 8.19 Ohms
  • Melting I2t: 0.000214
  • Size/Dimension: 0.119" Dia x 0.331" L (3.02mm x 8.40mm)
  • Packaging: Cut Tape (CT) and Tape & Box (TB)
  • Standard Package: 500
  • Safety: Intrinsically Safe
  • Temperature Range: -40°C to 125°C
  • Mounting Type: Through Hole
