Same model may have multiple batches, images only for reference.

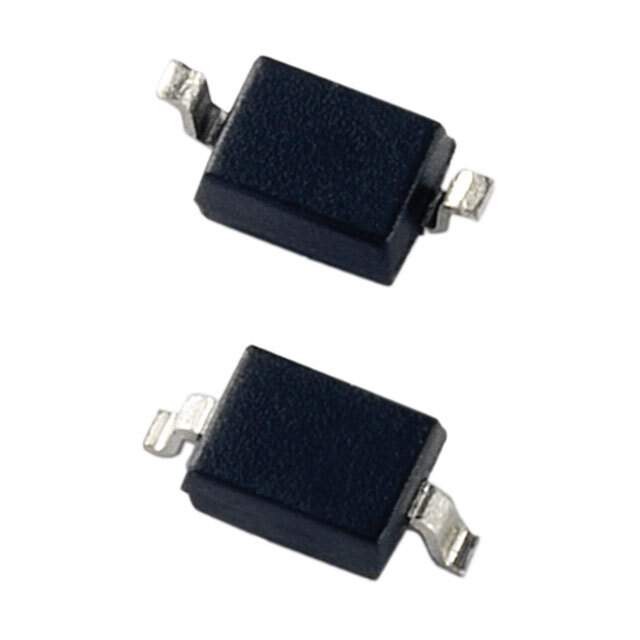

AQ36C-01FTG Real Image
Same model may have multiple batches, images only for reference.

AQ36C-01FTG

Part No AQ36C-01FTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 36VWM 62VC SOD323 / 62V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 36V (Max)
Voltage - Clamping (Max) @ Ipp 62V
Current - Peak Pulse (10/1000µs) 5A (8/20µs)
Power - Peak Pulse 450W
Power Line Protection No
Applications Automotive, CAN
Capacitance @ Frequency 30pF @ 1MHz (Max)
Temperature Range - Operating -40°C ~ 150°C
Mounting Surface Mount
Case / Package SC-76, SOD-323
Supplier Device Package SOD-323
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number F10393TR,F10393CT,F10393DKR,-AQ36C-01FTG
Standard Package 3,000
Win Source Part Number 1334811-AQ36C-01FTG
Ultra Librarian 3D Model Ultra Librarian AQ36C-01FTG CAD Model

Description

The AQ36C-01FTG is a bidirectional Zener TVS diode from Littelfuse Inc. that is designed for use in automotive and CAN applications.

  • Application: Automotive and CAN
  • Direction: Bidirectional
  • Reverse Standoff Voltage: 36V
  • Clamping Voltage: 62V @ 8/20μs
  • Package: Surface-Mount
  • Device Package: SOD-323
  • Peak Pulse Power: 450W
  • Peak Pulse Current: 5A @ 8/20μs
  • Capacitance: 30pF @ 1MHz
  • ECCN: EAR99
  • MSL Level: 1
