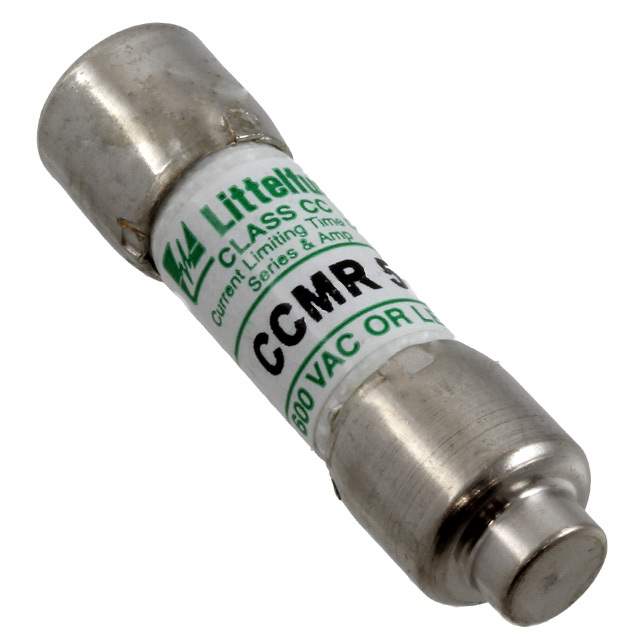

CCMR006.TXP

Part No CCMR006.TXP
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 6A 600VAC/250VDC / 6A 600 V AC 250 V DC Fuse Cartridge Requires Holder
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD®, POWR-PRO® CCMR
Package Bulk
Mounting Type Requires Holder
Fuse Type Cartridge
Current Rating (Amps) 6A
Voltage Rating - AC 600 V
Voltage Rating - DC 250 V
Response Time Slow Blow
Applications Motor Protection
Class CC
Approval Agency CE, UL
Breaking Capacity @ Rated Voltage 300kA AC, 20kA DC
Package / Case 5AG, 10mm x 38mm (Midget)
Size / Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
California Prop 65 Warning Information
Win Source Part Number 1337553-CCMR006.TXP
Ultra Librarian 3D Model Ultra Librarian CCMR006.TXP CAD Model

Description

The Littelfuse Inc. CCMR006.TXP POWR-GARD®, POWR-PRO® CCMR series fuse is a slow blow cartridge fuse with a voltage rating of 600 V AC and 250 V DC.

  • Voltage Rating: 600 V AC, 250 V DC
  • Current Rating: 6A
  • Breaking Capacity: 300kA AC and 20kA DC @ Rated Voltage
  • Application: Motor Protection
  • Class: CC
  • Package: 5AG, 10mm x 38mm (Midget)
  • Mounting Type: Holder Required
  • Packaging: Bulk
  • Standard Package: 10
  • Approvals: CE and UL
