Same model may have multiple batches, images only for reference.

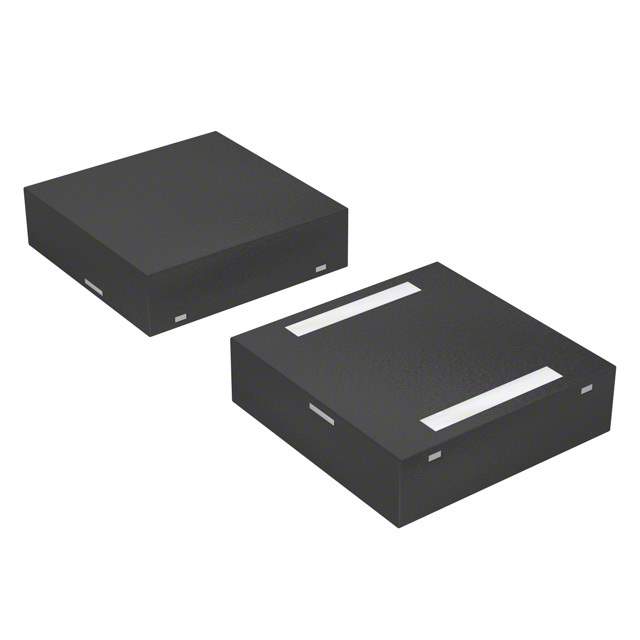

P1800Q12BLRP Real Image
Same model may have multiple batches, images only for reference.

P1800Q12BLRP

Part No P1800Q12BLRP
Manufacturer Littelfuse Inc.
Catalog TVS - Thyristors
Description Q2L Series SIDACtor Device
Datasheet
P1800Q12BLRP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series SIDACtor
Packaging Reel - TR
Voltage - Breakover 220V
Voltage - Off State 170V
Voltage - On State 5V
Current - Peak Pulse (8/20μs) 250A
Current - Peak Pulse (10/1000μs) 80A
Current - Hold (Ih) 150mA
Number of Elements 1
Capacitance 35pF
Mounting SMD
Package 2-TDFN
Win Source Part Number 1234237-P1800Q12BLRP
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Limited
Family Name P1800Q12B
Introduction Date September 28, 2005
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian P1800Q12BLRP CAD Model

Description

The Littelfuse Inc. P1800Q12BLRP SIDACtor is a 2-TDFN packaged component designed for circuit protection.

  • Package: 2-TDFN
  • Application: Circuit Protection
  • Voltage-Off State: 170V
  • Voltage-Breakover: 220V
  • Peak Pulse Current: 80A (10/1000μs) and 250A (8/20μs)
  • Capacitance: 35pF
  • Current Hold: 150mA
  • Manufactured in: Philippines
