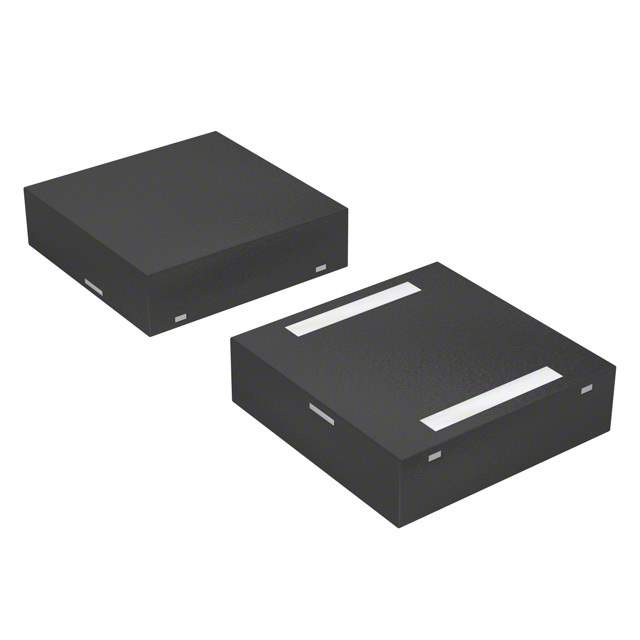

The Littelfuse P2600Q12BLRP is a transient voltage suppression (TVS) diode designed to protect sensitive electronic components from voltage transients induced by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning. It's part of Littelfuse's P2600 series, known for their robust protection capabilities in a small form factor.

Applications:

• Consumer Electronics: Protection for smartphones, tablets, and other portable devices.
• Industrial Equipment: Safeguards control systems, sensors, and communication interfaces.
• Telecommunications: Protection for network equipment and communication lines.
• Automotive Electronics: Protects sensitive automotive systems from voltage surges.

Features:

• Unidirectional TVS Diode: Provides protection against positive voltage transients.
• Low Clamping Voltage: Limits the voltage across the protected device during a transient event.
• Fast Response Time: Quickly clamps transient voltages to prevent damage.
• Surface Mount Package: Allows for easy integration into PCB designs.
• RoHS Compliant: Complies with Restriction of Hazardous Substances directive.

Benefits:

• Enhanced Reliability: Protects sensitive components from damaging voltage transients.
• Increased System Uptime: Prevents failures due to ESD, EFT, and lightning strikes.
• Reduced Warranty Costs: Minimizes the risk of component failure and product returns.
• Simplified Design: Easy to implement and requires minimal external components.
• Cost-Effective Protection: Provides robust protection at a low cost.

Additional Details:

The P2600Q12BLRP has a standoff voltage of 12V, meaning it starts clamping above this voltage level. The clamping voltage is typically specified at a certain test current. It's crucial to select a TVS diode with a standoff voltage slightly higher than the normal operating voltage of the circuit it's protecting. The datasheet from Littelfuse provides detailed specifications, including the peak pulse power, clamping voltage, and operating temperature range.
