Same model may have multiple batches, images only for reference.

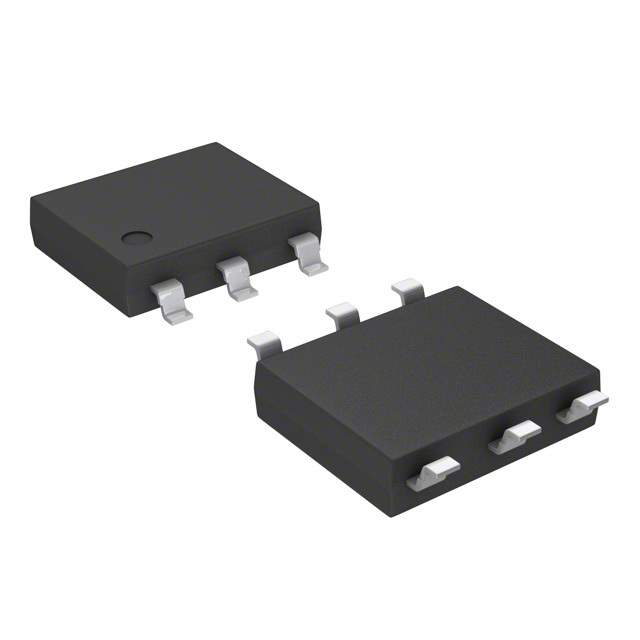

P3203UALRP Real Image
Same model may have multiple batches, images only for reference.

P3203UALRP

Part No P3203UALRP
Manufacturer Littelfuse Inc.
Catalog TVS - Thyristors
Description SIDAC SYM 3CHP 270V 150A MS013
Datasheet
P3203UALRP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Voltage - Breakover 350V
Voltage - Off State 270V
Voltage - On State 8V
Current - Peak Pulse (8/20μs) 150A
Peak Pulse Current(Ippm) 45A
Current - Hold (Ih) 150mA
Number of Elements 3
Capacitance 45pF, 70pF
Mounting SMD (SMT)
Dimension 6-SMD, Gull Wing
Win Source Part Number 045480-P3203UALRP
Family Name P3203UA
Introduction Date September 07, 2009
ECCN EAR99
Country of Origin China
Estimated EOL Date 2022
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian P3203UALRP CAD Model

Description

The P3203UALRP is a 3-element thyristor surge protection device manufactured by Littelfuse Inc.

  • Type: 3-element thyristor surge protection device.
  • Capacitance: 45pF and 70pF.
  • Voltage Off State: 270V.
  • Voltage Breakover: 350V.
  • Voltage On State: 8V.
  • Peak Pulse Current (8/20μs): 150A.
  • Current Hold (Ih): 150mA.
  • Package: 6-SMD, Gull Wing.
  • Status: Active.
  • Peak Pulse Current (Ippm): 45A.
  • Applications: Widely used in applications such as AC power lines, telecommunications equipment, and industrial control systems.
