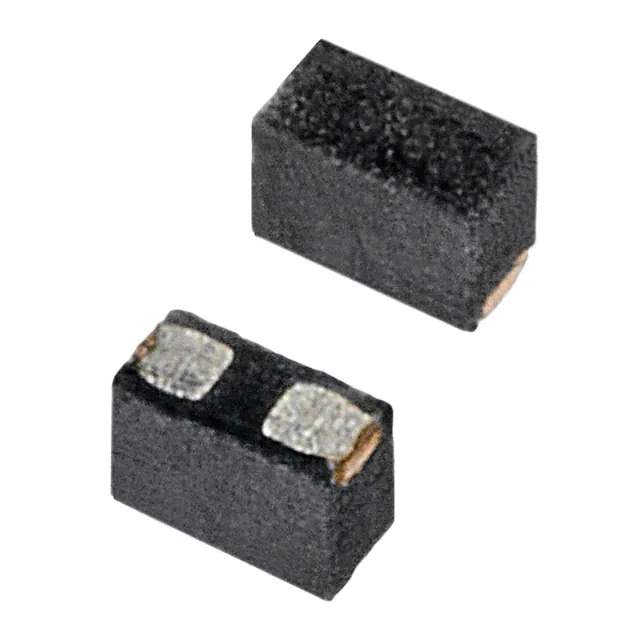

SP1006-01UTG Real Image
Same model may have multiple batches, images only for reference.

SP1006-01UTG

Part No SP1006-01UTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 6VWM 9.2VC 2UDFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series SP1006, SPA®
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 6V (Max)
Voltage - Breakdown (Min) 7.8V (Typ)
Voltage - Clamping (Max) @ Ipp 9.2V
Current - Peak Pulse (10/1000µs) 5A (8/20µs)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 0201 (0603 Metric)
Supplier Device Package 2-uDFN
Standard Package 15,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 741946-SP1006-01UTG
Ultra Librarian 3D Model Ultra Librarian SP1006-01UTG CAD Model

Description

The Littelfuse Inc. Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes is a high-quality electronic component designed for general-purpose applications.

  • Series: SP1006, SPA®
  • Type: Zener diode
  • Packaging: tape & reel
  • Package Quantity: 15,000 pieces
  • Reverse Standoff Voltage: 6V (max)
  • Breakdown Voltage: 7.8V (typ)
  • Clamping Voltage: 9.2V @ Ipp
  • Peak Pulse Current Rating: 5A (8/20µs)
  • Mounting Type: surface mount
  • Package: 0201 (0603 Metric)
  • Manufacturer: Littelfuse Inc.
