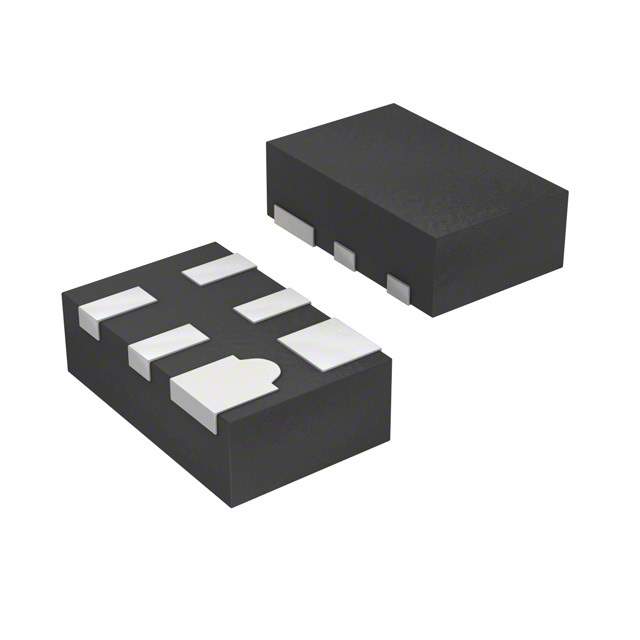

SP3014-02UTG Real Image
Same model may have multiple batches, images only for reference.

SP3014-02UTG

Part No SP3014-02UTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description ESD Suppressor Diode Diode Array Uni-Dir 5V Automotive 6-Pin UDFN T/R / TVS DIODE 5VWM 6.8VC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 5V (Max)
Max Clamping Voltage 6.8V (Typ)
Peak Pulse Current(Ippm) 8A (8/20μs)
Power Line Protection Yes
Applications Automotive
Capacitance @ Frequency 1pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 6-UDFN (1.6x1.0)
Win Source Part Number 1101197-SP3014-02UTG
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SP3014-02
Introduction Date July 29, 2014
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian SP3014-02UTG CAD Model

Description

The SP3014-02UTG is a steering circuit protection device from Littelfuse Inc. that is designed for automotive applications.

  • Channels: 2 Unidirectional
  • Protection: Power line protection
  • Capacitance: 1pF @ 1MHz
  • Stand-off Voltage (Max): 5V
  • Max Clamping Voltage (Typ): 6.8V
  • Peak Pulse Current (Ippm): 8A (8/20μs)
  • Supply and Demand: Balanced
