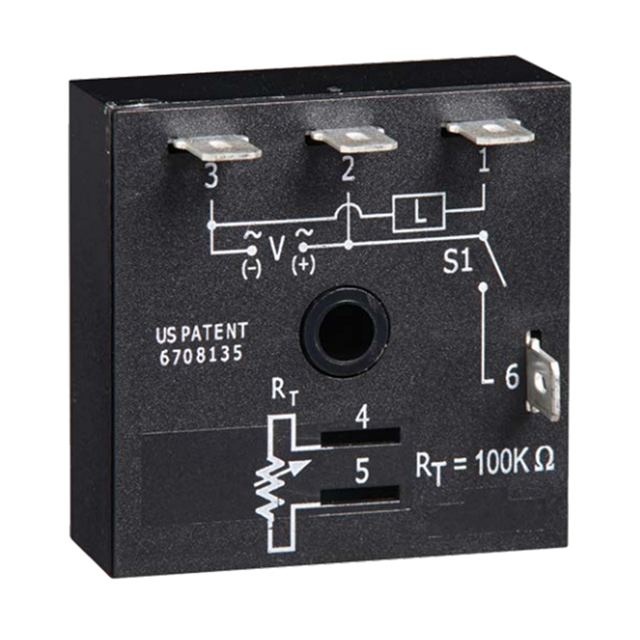

TSDS2110S Real Image
Same model may have multiple batches, images only for reference.

TSDS2110S

Part No TSDS2110S
Manufacturer Littelfuse Inc.
Catalog Time Delay Relays
Description RELAY TIME DELAY 10SEC  /  One Shot Time Delay Relay SPST-NO (1 Form A) Fixed, 10 Sec Delay Chassis Mount
Datasheet
TSDS2110S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Time Delay Relays
Mfr Littelfuse Inc.
Series TSDS
Package Bulk
Mounting Type Chassis Mount
Relay Type Solid State Relay
Function One Shot
Circuit SPST-NO (1 Form A)
Delay Time Fixed, 10 Sec
Voltage - Supply 24VAC
Termination Style Quick Connect - 0.250" (6.3mm)
Timing Adjustment Method Fixed
Timing Initiate Method Input Voltage, Trigger Signal
MSL Level Not Applicable
ECCN EAR99
HTSUS 8479.90.9596
Other Names -1024-TSDS2110S
Standard Package 1
Win Source Part Number 1056119-TSDS2110S
Ultra Librarian 3D Model Ultra Librarian TSDS2110S CAD Model

Description

This electronic component is a Littelfuse Inc. manufactured solid state relay with Win Source Part Number 1056119-TSDS2110S.

  • Win Source Part Number: 1056119-TSDS2110S
  • Category: Industrial Automation and Controls>Time Delay Relays
  • Series: TSDS series
  • Delay Time: 10 seconds (Fixed)
  • Circuit: SPST-NO (1 Form A)
  • Operating Voltage: 24VAC
  • Mounting Type: Chassis Mount
