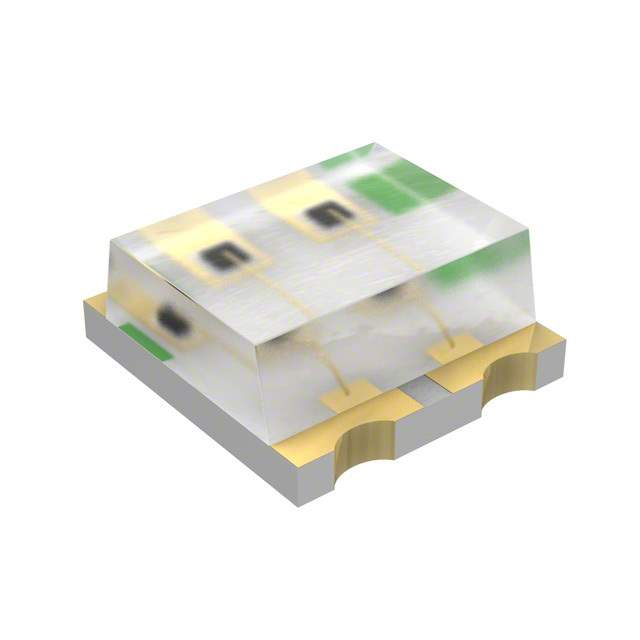

SML-LX0606IGC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX0606IGC-TR

Part No SML-LX0606IGC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED GREEN/RED CLEAR SMD / Green, Red LED Indication - Discrete 2.2V Green, 2V Red 0606 (1616 Metric)
Datasheet
SML-LX0606IGC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Green, Red
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 10mcd Green, 10mcd Red
Lens Style Rectangle with Flat Top
Lens Size 1.10mm x 1.50mm
Voltage - Forward (Vf) (Typ) 2.2V Green, 2V Red
Current - Test 20mA Green, 20mA Red
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Peak 565nm Green, 635nm Red
Package / Case 0606 (1616 Metric)
Dimension 1.60mm L x 1.50mm W
Height (Max) 0.70mm
Base Product Number SML-LX0606
Other Names Q3119370,67-2186-6,67-2186-2,SML-LX0606IGC-TR,67-2186-1
Standard Package 2,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241894-SML-LX0606IGC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX0606IGC-TR CAD Model

Description

The SML-LX0606IGC-TR LED Indication - Discrete component from Lumex Opto/Components Inc. is a green and red SMD LED that comes in a tape and reel package with a viewing angle of 120 degrees.

  • Viewing Angle: 120 degrees
  • Millicandela Rating: 10mcd for both green and red colors
  • Voltage-Forward: 2.2V for green and 2V for red
  • Current-Test: 20mA for both colors
  • Wavelength Peak: 565nm for green and 635nm for red
  • Height: 0.70mm
  • Package/Case: 0606 (1616 Metric)
  • Dimension: 1.60mm L x 1.50mm W
  • Lens Style: Rectangle with a flat top
  • Lens Size: 1.10mm x 1.50mm
  • Perfect for: Use in optoelectronics applications that require green and red light sources
