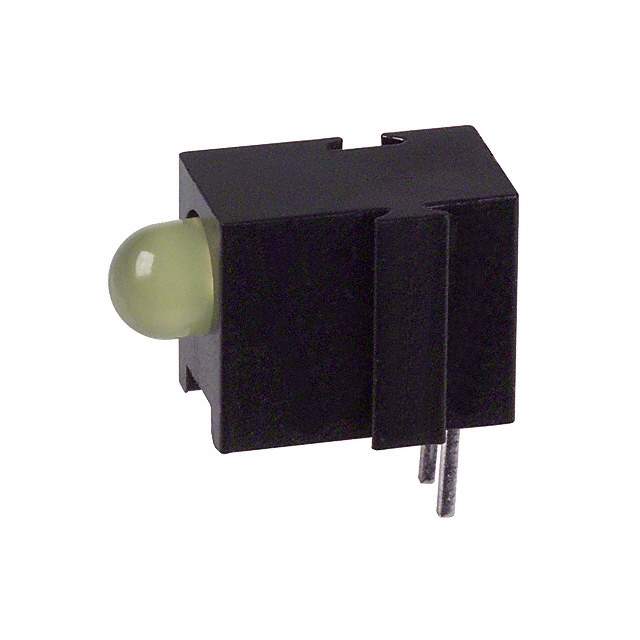

SSF-LXH2300YD-LM Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH2300YD-LM

Part No SSF-LXH2300YD-LM
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3MM RA MATING YELLOW PC MNT / LED Circuit Board Indicator LED Circuit Board Indicator Single Yellow Diffused, Tinted 2.1V 20mA Round with Domed Top 3.00mm Dia Through Hole, Right Angle
Datasheet
SSF-LXH2300YD-LM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Yellow
Wavelength - Peak 585nm
Configuration Single
Current 20mA
Millicandela Rating 50mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3.00mm Dia
Voltage Rating 2.1V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH2300
Other Names LU20247,67-1275,SSF-LXH2300YD,SSFLXH2300YDLM
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238128-SSF-LXH2300YD-LM
Ultra Librarian 3D Model Ultra Librarian SSF-LXH2300YD-LM CAD Model

Description

The SSF-LXH2300YD-LM is a single yellow LED from Lumex Opto/Components Inc.

  • Voltage Rating: 2.1V
  • Current: 20mA
  • Millicandela Rating: 50mcd
  • Peak Wavelength: 585nm
  • Lens: Diffused and tinted with a round domed top lens style
  • Lens Size: 3.00mm dia
  • Mounting: Through hole
  • Configuration: Right angle
  • Viewing Angle: 60 degrees
  • Packaging: Bulk packaging of 500 units
  • Category: Optoelectronics under LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
