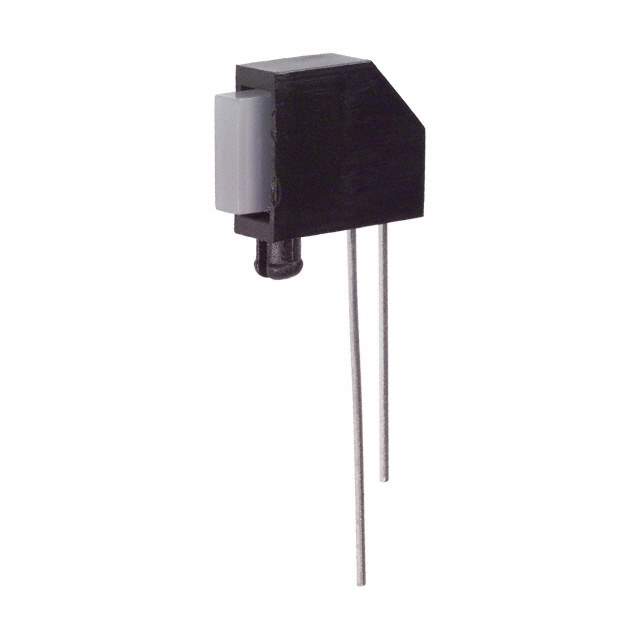

SSF-LXH25780HGW Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH25780HGW

Part No SSF-LXH25780HGW
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 2.5X7MM RA RED/GRN DIFFPCMT / LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Green, Red Diffused, White 2.2V Green, 2V Red 20mA Rectangle with Flat Top 7.00mm x 2.50mm Through Hole, Right Angle
Datasheet
SSF-LXH25780HGW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green, Red
Configuration Bar - Single, SIP
Current 20mA
Viewing Angle 110°
Lens Type Diffused, White
Lens Style Rectangle with Flat Top
Lens Size 7.00mm x 2.50mm
Voltage Rating 2.2V Green, 2V Red
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH25780
Other Names 67-1268R,67-1268,LU202315,SSFLXH25780HGW
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238234-SSF-LXH25780HGW
Ultra Librarian 3D Model Ultra Librarian SSF-LXH25780HGW CAD Model

Description

The SSF-LXH25780HGW is an optoelectronic component that comes in a bulk package.

  • Style: Bar-style LED
  • Configuration: Single
  • Viewing Angle: 110 degrees
  • Colors: Green and Red
  • Voltage Rating: 2.2V for green and 2V for red
  • Millicandela Rating: Not specified
  • Lens Type: Diffused and White
  • Lens Shape: Rectangle
  • Lens Top: Flat Top
  • Mounting Type: Through-Hole
  • Mounting Angle: Right Angle
  • Lens Dimensions: 7.00mm x 2.50mm
  • Manufacturer: Lumex Opto/Components Inc.
  • Base Product Number: SSF-LXH25780
