Same model may have multiple batches, images only for reference.

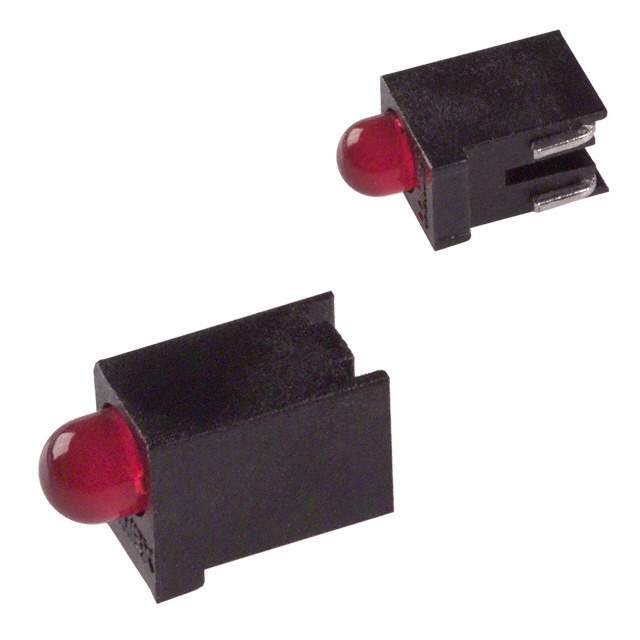

SSF-LXH305ID Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH305ID

Part No SSF-LXH305ID
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED T-3MM 635NM RED DIFF RA SMD / LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 2V 20mA Surface Mount, Right Angle
Datasheet
SSF-LXH305ID Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red
Wavelength - Peak 635nm
Configuration Single
Current 20mA
Millicandela Rating 40mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Voltage Rating 2V
Mounting Type Surface Mount, Right Angle
Base Product Number SSF-LXH305
Other Names Q2857213,Q6779925S
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238171-SSF-LXH305ID
Ultra Librarian 3D Model Ultra Librarian SSF-LXH305ID CAD Model

Description

The SSF-LXH305ID is a red LED circuit board indicator with a millicandela rating of 40mcd and a viewing angle of 60 degrees.

  • Color: Red
  • Millicandela Rating: 40mcd
  • Viewing Angle: 60 degrees
  • Voltage Rating: 2V
  • Current: 20mA
  • Packaging: Bulk
  • Standard Package: 500
  • Lens Type: Diffused and tinted
  • Mounting Type: Surface mount, right angle
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8541.41.0000
  • Manufacturer: Lumex Opto/Components Inc.
  • Base Product Number: SSF-LXH305
