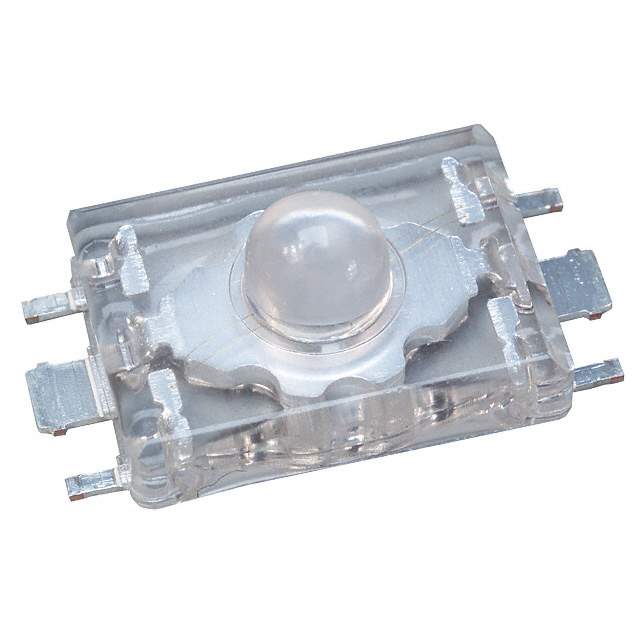

Same model may have multiple batches, images only for reference.

SSP-LX6144A7UC

Part No SSP-LX6144A7UC
Manufacturer Lumex Opto/Components Inc.
Catalog LED Lighting - Color
Description LED LUXLED BLUE 470NM SMD / LED Lighting Color series Blue 470nm (Typ) 6-SMD, Flat Leads
Datasheet
SSP-LX6144A7UC Datasheet
Sample
ECAD Module ECAD
rohs

Shipping Information

Shipped from HK warehouse
Expected Shipping Date Ask for an estimation

Products specifications

Category Optoelectronics>LED Lighting - Color
Mfr Lumex Opto/Components Inc.
Series LuxLED™
Package Tube
Product Status Obsolete
Color Blue
Wavelength 470nm (Typ)
Current - Test 120mA
Voltage - Forward (Vf) (Typ) 3.4V
Lumens/Watt @ Current - Test 5 lm/W
Current - Max 120mA
Luminous Flux @ Current/Temperature 2lm (Typ)
Temperature - Test 25°C
Viewing Angle 10°
Mounting SMD (SMT)
Package / Case 6-SMD, Flat Leads
Supplier Device Package SMD
Dimension 0.441" L x 0.614" W (11.20mm x 15.60mm)
Height - Seated (Max) 0.299" (7.60mm)
Other Names 441-1092
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240312-SSP-LX6144A7UC
Fake Threat In the Open Market 47 pct.

Description

The SSP-LX6144A7UC is an electronic component manufactured by Lumex Opto/Components Inc. It is a blue LED lighting color product that belongs to the LuxLED series. It comes in a tube package and has a height of 0.299" (7.60mm) when seated. The standard package includes 20 units. It uses SMD (SMT) mounting technology and has a maximum current of 120mA. The viewing angle is 10 degrees and the voltage forward (Vf) (typ) is 3.4V. The wavelength is 470nm (typ) and the lumens/watt @ current - test is 5 lm/W. The thermal resistance of the package is not specified. The temperature - test is 25 degrees Celsius. The package/case is 6-SMD, flat leads, and the supplier device package is SMD. The dimension is 0.441" L x 0.614" W (11.20mm x 15.60mm). The ECCN is EAR99 and the fake threat in the open market is 47%. The MSL level is 1 (Unlimited) and the REACH status is REACH unaffected. The HTSUS is 8541.41.0000. This product is obsolete and luminous flux @ current/temperature is 2lm (typ).
